Product Description:
Compatible with 1967-1972 Chevrolet C10 and GMC C15

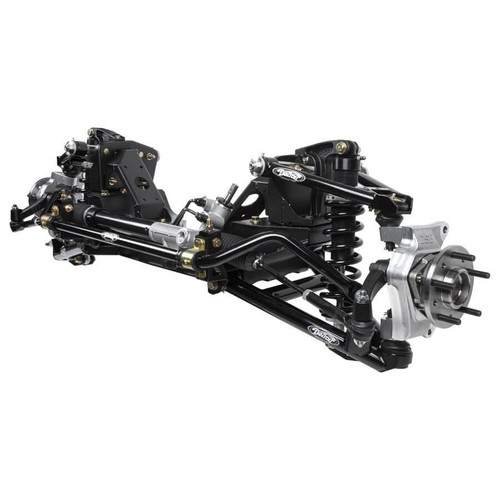

Detroit Speed is proud to offer a new line of suspension products for Chevrolet C10 truck enthusiasts! Continuing to reinforce thoughtfully designed products and modern-day ride quality, we ensure each driver, whether cruising or hauling, will enjoy the look and feel of their truck. The Detroit Speed C10 SpeedMAX front suspension is designed for a truck using truck strength parts and not car strength parts. It is designed with no compromises and exclusive DSE suspension geometry for superior handling and ride quality at a lowered ride height. This 100% bolt-on front suspension system utilizes the OE-style GMT800 brake design, which allows for stock or aftermarket brake options. Versions are available with non-adjustable, single adjustable, and dual adjustable shocks.
Features
- 100% bolt-on front suspension system that can be installed in your garage
- Body panels and engine do not need to be removed for ease of installation
- Features "Detroit Tuned" GMT800 rack and pinion for positive and smooth steering
- DSE "Detroit Tuned" aluminum body Coilover shocks/springs with 550lb/in springs allow for ride height adjustment and spring rate tuning without having to disassemble the control arms for a 4 to 6-inch drop
- Features ADI (Austempered Ductile Iron) upper shock bracket that uses a special heat-treated high strength cast iron for excellent wear resistance and fatigue strength
- Forged in the USA DSE aluminum spindle assemblies feature a 5 x 5" or 5 x 4-3/4" dual bolt pattern modern hub pack wheel bearing designed to use modern GMT800 (1999-2006) GM Truck brakes (requires DSE 13" dual drilled rotors)
- USA forged steel steering arm bolts onto the spindle
- Includes sway bar with improved design/rate over optional factory bar using polyurethane bushings and low friction modern aluminum end links to control sway
- Uses tubular upper and lower control arms with Delrin bushings that are designed for trucks
- Stainless steel upper control arm cross shafts feature caster tuner bushings for quick and easy caster changes independent of camber
- Accepts Small Block Chevy Engine Mounts
Fitment Notes
- Must use at least 17"" wheels with a minimum inside wheel diameter of 16.25"
- DSE part #050403DS brake rotors are recommended for this installation
- DSE part #092534DS steering shaft and Ididit part #1120658010 steering column are required for this installation
Specifications
Static Camber: -0.5 degrees +/-0.2 degrees
Static Caster: 7 degrees +/- 0.5 degrees
Static Toe: 0 degrees +/- 0.1 degrees
Total Suspension Travel: 6 in.
Manufacturer: Detroit Speed
Emission Code: 4
Engine: Small Block/LS
Finish: Powdercoated
Installed Shock Length: 15 in.
Product Type: SpeedMAX Subframe
Ride Height: 0.4 in. +/- 1 in.
Shock Type: Non Adjustable
