Keep Your LT1 Cool: Why Healthy Dual Electric Fans Matter in a Fourth-Gen F-Body

There is a particular kind of satisfaction in driving a 1993-1997 Camaro Z28, Camaro SS, Firebird Formula or Trans Am. The long hood, low seating position and unmistakable pull of the 5.7-liter LT1 make these early fourth-generation F-bodies feel special even decades later. That age, however, makes cooling-system condition more important than ever—especially when the car is idling in summer traffic, cruising with the air conditioning on or making repeated passes at the track.

Why the LT1 Cooling System Is Different

The Gen II LT1 was not simply a warmed-over traditional small-block. Chevrolet identifies reverse-flow cooling as one of the engine's defining advances, and SAE technical paper 920673 documents that unique system as part of the new-generation small-block design. Coolant is directed to the cylinder heads before the block, helping control combustion-chamber temperature and supporting the LT1's compression and performance.

That clever layout still depends on the complete system working together: radiator, coolant, pressure cap, hoses, water pump, thermostat, sensors, relays, wiring and electric fans. A strong radiator cannot reject heat efficiently at low road speed if the fan assembly is not pulling adequate air through the core. On the highway, vehicle speed supplies natural airflow. In a parking lot, staging lane or traffic jam, the electric fans become the airflow.

Why Two Fans Matter

The factory-style dual-fan arrangement gives the LT1 F-body broad coverage across the radiator core and allows the vehicle's control system to manage fan operation according to conditions. A weak motor, damaged blade, cracked shroud, poor connector, faulty relay or restricted radiator can reduce cooling performance. Owners should diagnose the full circuit instead of assuming that every rising gauge points to the fan assembly.

A useful driveway check begins with the engine completely cold. Inspect coolant level according to the owner's manual, look for leaks or dried residue, examine the radiator face for debris and check the fan shroud and blades for damage. With the engine running, observe operation from a safe distance—never place hands, clothing or tools near an electric fan, because it can start unexpectedly. If the temperature climbs abnormally, the low-coolant warning appears or coolant is lost, stop and investigate rather than continuing to drive. Never remove a pressure cap from a hot cooling system.

Used OEM GM Fit and a 50% Sale

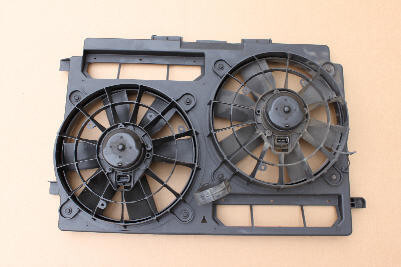

For owners who want a factory-style replacement, Hawks Motorsports offers the 1993-1997 Camaro/Firebird LT1 Dual Electric Fan Assembly, part HT-DFKLT1. This is a used original GM assembly, not a universal aftermarket fan package. It is intended for compatible 1993-1997 LT1-equipped Camaro and Firebird applications and is not the correct assembly for V6 cars or 1998-2002 LS1 models.

Because these are used assemblies, normal cosmetic wear, dirt, discoloration and small appearance differences should be expected; the product photograph is representative. Buyers should compare the mounting points, shroud layout, fan arrangement and electrical connections with the assembly in their car before ordering. Availability is limited to used inventory, so the sale is especially relevant for an owner whose diagnosis has confirmed a worn or damaged fan assembly.

Think of Cooling as a System

Replacing a failed fan assembly can restore an essential part of the cooling system, but it should not become a shortcut around diagnosis. Verify the radiator is clear, the coolant is correct and serviceable, the system is properly filled, the cap holds pressure, the water pump circulates coolant and the electrical controls command both fans correctly. Modified calibrations can also change fan strategy, so modified cars deserve extra verification.

That system-level approach is the enthusiast's best defense against heat-related trouble. A well-sorted LT1 can deliver the torque, sound and personality that made the early fourth-gen F-body memorable—without turning every warm-day traffic jam into a stare at the temperature gauge.

Shop Used OEM GM LT1 Dual Fans

Sources

• Hawks Motorsports: 1993-1997 Camaro/Firebird LT1 Electric Dual Fans, Used
• SAE Technical Paper 920673: New Generation Small Block V8 Engine
• Chevrolet Performance: Small-Block Engine Timeline
• Dezo's Manuals: Archived GM Camaro and Firebird Owner's Manuals

Sale price and availability are subject to change. Used parts may vary cosmetically from the representative image. Always confirm application before ordering and follow the factory service information for diagnosis and installation.
