Product Description:

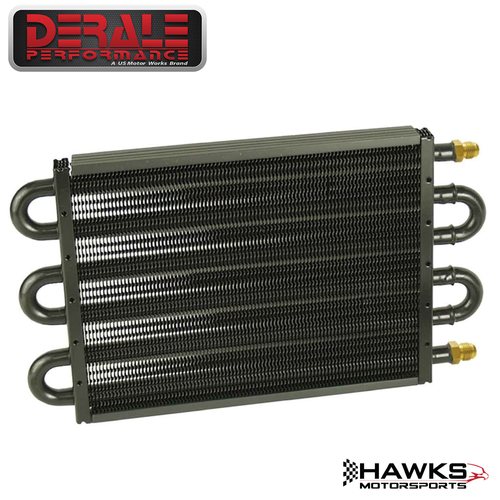

Keep operating temperatures under control with the Derale 13316 Series 7000 Tube & Fin Fluid Cooler. Designed for universal performance applications, this compact 6-pass cooler features 1/2-inch copper tubing expanded into aluminum cooling fins for excellent heat transfer while maintaining a lightweight, durable design.
Equipped with -6AN male fittings, the 13316 is ideal for custom plumbing and can be used as a transmission cooler, power steering cooler, fuel cooler, or auxiliary fluid cooler. The cooler incorporates extruded plastic fin guards to help protect the cooling fins during installation and service.
With a 15,500 GVW rating and an additional 6-ounce fluid capacity, this cooler is an excellent choice for street performance vehicles, muscle cars, race cars, trucks, SUVs, and custom builds requiring dependable fluid temperature control.
Note: Cooler core only. Mounting hardware, brackets, hose, and fittings are sold separately.
Key Features:
- Derale Part Number: 13316
- Universal Series 7000 Tube & Fin Fluid Cooler
- 6-pass cooling design for improved heat dissipation
- Durable copper tube and aluminum fin construction
- -6AN male inlet and outlet fittings
- Suitable for transmission, power steering, fuel, and other fluid cooling applications
- Extruded plastic fin guards help protect cooling fins
- 15,500 GVW rating
- Adds approximately 6 oz. of fluid capacity
- Cooler core only; installation hardware not included
Specifications:
- Cooler Style: Tube & Fin
- Number of Passes: 6
- Construction: Copper Tube / Aluminum Fin
- Inlet Size: -6AN
- Overall Width: 13-1/2 in.
- Overall Height: 7-5/8 in.
- Thickness: 3/4 in.
- Mounting Width: 9-5/8 in.
- Inlet Center Distance: 6-1/4 in.
- Additional Fluid Capacity: 6 oz.
- GVW Rating: 15,500 lbs.
Fitment Applications:
- Universal Fitment
Recommended for custom installations including:
- Automatic transmission cooling
- Power steering cooling
- Fuel cooling
- Auxiliary fluid cooling
- Street performance vehicles
- Muscle cars
- Race cars
- Off-road vehicles
- Trucks and SUVs
- Custom automotive builds
Installation Notes:
- Professional installation recommended.
- Verify available mounting space before ordering.
- Use compatible -6AN hoses and fittings.
- Mount in an area with adequate airflow for maximum cooling efficiency.
- Mounting hardware and plumbing components are not included.
Condition: New
GM Vehicle Applications (Universal Installation)
Chevrolet
1982–2002 Camaro (V8 and performance applications)
1993–2002 Camaro Z28
1996–2002 Camaro SS
1982–1992 Camaro IROC-Z
1982–2002 Camaro RS
1982–2002 Camaro Berlinetta
1993–2002 Corvette (C4 & C5)
1997–2013 Corvette (auxiliary transmission or power steering cooling)
1988–1998 C/K 1500
1988–2000 C/K 2500
1988–2000 C/K 3500
1999–2006 Silverado 1500
2001–2007 Silverado 2500HD
2001–2007 Silverado 3500
1992–2006 Suburban
1995–2006 Tahoe
1995–2006 Blazer
2002–2009 TrailBlazer
2003–2006 SSR
2004–2006 Colorado
2004–2006 GTO (with custom plumbing)
Pontiac
1982–2002 Firebird
1982–2002 Trans Am
1989–2002 Formula
2004–2006 GTO
GMC
1988–1998 C/K 1500
1988–2000 C/K 2500
1988–2000 C/K 3500
1999–2006 Sierra 1500
2001–2007 Sierra 2500HD
2001–2007 Sierra 3500
1992–2006 Yukon
1992–2006 Yukon XL
2002–2009 Envoy
2004–2006 Canyon
Cadillac
2004–2009 CTS-V
2004–2006 Escalade
2002–2006 Escalade EXT
2002–2006 Escalade ESV
