Product Description:
Hawks Motorsports offers our clients this 1970-1981 Camaro Dakota Digital VHX Instrument System - VHX-70C-CAM for upgrading the factory gauge area in second generation Camaro models with a direct-fit, full-function instrument system that keeps a classic appearance while adding modern electronic gauge technology.
This Dakota Digital VHX system is designed for 1970-1981 Camaro models and installs using a stock or reproduction dash bezel, which is available separately. The system combines analog-style gauges with fully lit needles, backlit faces, and LCD message centers for a clean restomod gauge package that does not make the dash look like a spaceship cockpit crash-landed in 1974.
The VHX system includes modern readings for speedometer, tachometer, oil pressure, water temperature, fuel level, and voltage, along with digital message center functions such as odometer, trip meters, clock, performance timers, high speed recall, and high RPM recall. Built-in indicators support common functions such as turn signals, high beam, check engine, parking brake, cruise control, and optional gear position display when properly equipped.
This is a strong upgrade for Camaro owners building a restored driver, pro-touring car, LS swap, EFI conversion, restomod, or custom interior while still wanting a gauge package that works with the original dash layout.
Features:
- Fits 1970-1981 Chevrolet Camaro models
- Dakota Digital VHX instrument system
- Part number VHX-70C-CAM
- Direct-fit instrument system for second generation Camaro models
- Designed to use a stock or reproduction dash bezel, available separately
- Fully lit needles
- Backlit gauge faces
- Highly visible LCD message centers
- Micro-controlled precision stepper motors
- Solid-state sensor technology
- User-customizable display feedback
- Analog-style gauge layout with modern electronic operation
- Available gauge face and lighting options depending on selected configuration
- Speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter readings
- Digital odometer, dual trip meter, clock, performance meters, and recall functions
- Built-in indicators for common vehicle functions
- Good choice for restoration, restomod, pro-touring, LS swap, EFI conversion, and custom interior builds
- Does not fit Firebird
Gauge Readings:
- Speedometer: 0-160 MPH analog display
- Tachometer: 0-8,000 RPM analog display
- Oil pressure: 0-80 PSI analog display
- Water temperature: 100-260 degrees Fahrenheit analog display
- Fuel level: E, 1/4, 1/2, 3/4, F analog display
- Voltmeter: 9-17 VDC analog display
Digital Message Center Functions:
- Odometer
- Dual trip meters
- Clock
- 0-60 MPH timer
- 1/4 mile timer
- 1/4 mile trap speed
- High speed recall
- High RPM recall
- Digital speedometer display
- Digital tachometer display
- Digital oil pressure display
- Digital water temperature display
- Digital voltmeter display
- Digital fuel level display
Built-In Indicators:
- Left and right turn signals
- High beam
- Check engine
- Parking brake
- Cruise control when vehicle is equipped
- Optional gear position display with compatible gear position sensor
- Additional indicator use may vary by vehicle wiring and setup
Includes:
- Dakota Digital VHX instrument system
- Control box
- Main harness / wiring components
- Water temperature sender
- Oil pressure sender
- Speedometer pulse generator / speed sensor components
- Pushbuttons for setup and calibration
- Sender bushings
- Installation and setup information
- Instrument system only unless otherwise specified
Not Included:
- Stock dash bezel
- Reproduction dash bezel
- Gauge carrier or bezel trim unless specifically stated
- Optional gear position sensor
- Optional dimming knob
- Optional OBD-II / CAN interface module
- Optional GPS speed sender
- Optional BIM expansion modules
- Installation labor, wiring repair, dash restoration, or tuning work
Fitment:
- 1970 Chevrolet Camaro
- 1971 Chevrolet Camaro
- 1972 Chevrolet Camaro
- 1973 Chevrolet Camaro
- 1974 Chevrolet Camaro
- 1975 Chevrolet Camaro
- 1976 Chevrolet Camaro
- 1977 Chevrolet Camaro
- 1978 Chevrolet Camaro
- 1979 Chevrolet Camaro
- 1980 Chevrolet Camaro
- 1981 Chevrolet Camaro
- 1970-1981 Chevrolet Camaro Base
- 1970-1981 Chevrolet Camaro Rally Sport / RS where applicable
- 1973-1981 Chevrolet Camaro LT / Berlinetta where applicable
- 1970-1972 Chevrolet Camaro SS
- 1970-1974 Chevrolet Camaro Z28
- 1977-1981 Chevrolet Camaro Z28
Fitment Note:
- This instrument system fits 1970-1981 Camaro only.
- This system does not fit Firebird.
- A stock or reproduction Camaro dash bezel is required and is available separately.
- Verify gauge option, face style, lighting color, dash bezel type, wiring condition, engine setup, transmission setup, speed signal source, fuel sender resistance, and indicator wiring before ordering.
- Some optional functions may require additional Dakota Digital modules or sensors.
- Not all original factory indicator lamp functions may be replaced by the new instrument system.
- Professional installation is recommended for vehicles with modified wiring, EFI swaps, LS swaps, aftermarket transmissions, or custom dash wiring

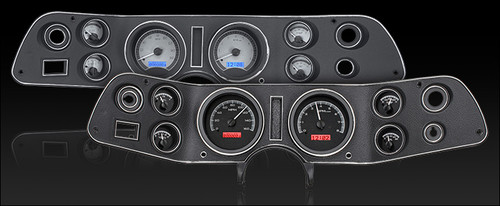

*Uses factory bezel (shown for demonstration purposes only)
| Analog Gauges |
| Speedometer |
| ·0 -160 MPH (optional metric version 0- 255 kmh) |
| Tachometer |
| ·0- 8,000 RPM |
| Oil Pressure |
| ·0- 80 psi |
| Water Temperature |
| ·100- 260ºF (optional metric version 40- 120ºC) |
| Fuel Level |
| ·E, 1/4, 1/2, 3/4, F |
| Voltmeter |
| ·9- 17 VDC |
| Lighting |
| ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. |
|
Digital Message Centers |
| Standard Displays |
| ·Odometer (One time user settable, Million Mile) |
| ·Dual (A/B) Trip Meter (0- 9,999.9) |
| ·Clock (12 hour) |
| Performance Meters |
| ·0- 60 MPH Timer (0- 100 kmh) |
| ·1/4 mile time |
| ·1/4 mile end speed (trap speed) |
| ·High speed recall |
| ·High RPM recall |
| Gauges |
| ·Speedometer (0- 255 MPH/kmh) |
| ·Tachometer (0- 9,900 RPM) |
| ·Oil Pressure (0-100 psi displayed in 1 psi increments) |
| ·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments) |
| ·Voltmeter (9- 17 VDC) |
| ·Fuel Level (0-99% full) |
| Lighting |
| ·Auto-contrasting LCD display for optimal view in the brightest of sunlight. |
| ·LED backlit at night to match/ complete the look at night. |
|
Built-in Indicators |
| Indicators |
| ·Turn Signals (Left/ Right) |
| ·High Beam |
| ·Check Engine |
| ·Parking Brake |
| ·Cruise Control (On/ On & Engaged when vehicle is equipped) |
| ·Gear Position (Optional GSS-3000 sensor required) |
| ·4 x 4 (When vehicle is equipped) |
| ·Wait to Start (When vehicle is equipped) |
**Not all OEM indicator lamp functions will be replaced.
|
|
Included Sensors |
| Water Temperature |
| ·1/8" NPT, ground isolated sensor with a 10 ft harness. |
| Oil Pressure |
| ·1/8" NPT solid state sensor with a 10 ft harness. |
| Cable Driven Speed Sensor/ Generator |
| ·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.) |
| Bushings |
| ·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads. |
| Control Box Dimensions |
| 5.5" x 3.5"x 1" |
|
Calibration |
| Pushbutton |
| ·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers. |
