Product Description:
Hawks Motorsports is pleased to offer our clients the following: 100% Complete PRO Pack reproduction bullet side-mirror kit for the 1970-1981 Chevrolet Camaro, Pontiac Firebird and Trans Am.
This five-part package provides both exterior sport mirrors, both side-specific mounting kits and the complete driver-side interior remote-control bezel and retainer set.
The driver-side mirror features a factory-style remote-adjustment mechanism with the control cable already installed. The passenger-side mirror is adjusted manually from outside the vehicle. Both mirror housings are manufactured from die-cast zinc and arrive in primer, ready for preparation and paint.

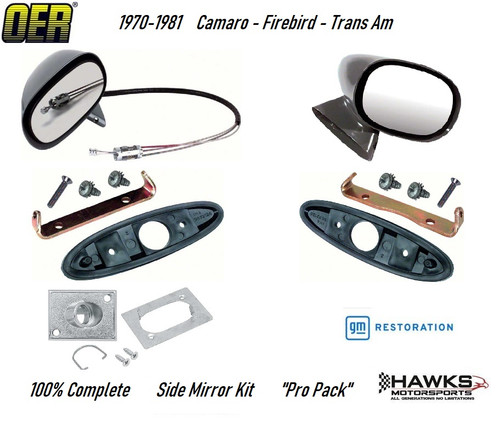

Complete PRO PACK Contents
Driver-Side Exterior Mirror — OER #9865801
- One left-hand driver-side bullet mirror
- One installed mirror glass
- One die-cast zinc exterior housing
- One factory-style remote swivel mechanism
- One preinstalled mechanical remote-control cable
- Primered paint-ready finish
Driver-Side Mounting Kit — OER #R313
- Driver-side mirror mounting bracket
- Driver-side mirror-to-door gasket
- Driver-side mounting screws
- Related driver-side mounting components
Driver-Side Remote-Control Bezel Set — OER #3921833
- Textured pebble-grain chrome remote-control bezel
- Interior reinforcement bracket
- Remote-control retaining clip
- Bezel mounting screws
Passenger-Side Exterior Mirror — OER #20154908
- One right-hand passenger-side bullet mirror
- One installed manual-adjustment mirror glass
- One die-cast zinc exterior housing
- Primered paint-ready finish
- Plain mirror glass without later safety-warning text
Passenger-Side Mounting Kit — OER #R312
- Passenger-side mirror mounting bracket
- Passenger-side mirror-to-door gasket
- Passenger-side mounting screws
- Related passenger-side mounting components
Key Features
- 100% Complete PRO PACK side-mirror package Industy Best
- GM Authorized Reproduction Mirro
- Includes driver and passenger side bullet mirrors
- Includes both side-specific mounting kits
- Includes driver-side interior remote-control bezel set
- New reproduction components
- Factory-style bullet or sport-mirror design
- Die-cast zinc mirror housings
- Primered paint-ready finish
- Driver-side remote-adjustment mirror
- Driver remote cable preinstalled
- Factory-style driver-side swivel mechanism
- Passenger-side manual-adjustment mirror
- Driver-side mounting bracket and gasket included
- Passenger-side mounting bracket and gasket included
- Side-specific mounting screws included
- Textured chrome driver-side remote-control bezel included
- Remote-control reinforcement bracket included
- Remote-control retaining clip included
- Designed for the factory mirror locations
- Fits applicable 1970-1981 Camaro and Firebird models
- Sold as one complete left-and-right mirror package
Fitment Applications
1970-1981 Chevrolet Camaro
Fits applicable second-generation Camaro models originally equipped with the corresponding factory-style bullet or sport mirrors, including:
- Camaro Sport Coupe
- Camaro Rally Sport
- Camaro Super Sport
- Camaro Z28
- Camaro Type LT
- Camaro Berlinetta
Trim-level and mirror-option availability vary by model year. Confirm that the vehicle uses the factory-style dual bullet-mirror configuration before installation.
1970-1981 Pontiac Firebird
Fits applicable second-generation Firebird models equipped with the corresponding factory-style sport mirrors, including:
- Pontiac Firebird
- Pontiac Firebird Esprit
- Pontiac Firebird Formula
- Pontiac Firebird Trans Am
Important Fitment Requirements
- Designed for the factory-style bullet or sport-mirror configuration
- Driver-side mirror uses mechanical remote adjustment
- Passenger-side mirror uses manual adjustment
- Requires the correct driver-side interior remote-control location
- Does not replace standard rectangular exterior mirrors
- Confirm both exterior mirror mounting patterns before installation
- Confirm that the driver remote cable can be routed through the factory door location
- Compare all components with the original parts before painting either mirror
- Vehicles not originally equipped with dual bullet mirrors may require additional modifications
Complete Left-and-Right Mirror Package
This PRO Pack combines the major exterior and interior components required to restore the factory-style dual sport-mirror system.
The driver-side assembly includes:
- Remote exterior mirror
- Preinstalled remote cable
- Exterior mounting kit
- Interior control bezel
- Reinforcement bracket
- Retaining clip
The passenger-side assembly includes:
- Manual exterior mirror
- Passenger-side mounting kit
- Mirror-to-door gasket
- Side-specific mounting components
This package eliminates the need to purchase five separate OER products and helps prevent mismatched driver- and passenger-side components.
Driver-Side Remote Mirror
OER mirror #9865801 installs on the left-hand driver side and includes a preinstalled mechanical remote-control cable.
The cable connects the mirror’s exterior swivel mechanism to the interior adjustment control. Moving the control changes the horizontal and vertical angle of the driver-side mirror glass.
Avoid twisting, crushing or sharply bending the cable during installation. Incorrect routing can restrict mirror movement or damage the internal control wires.
Driver-Side Interior Remote-Control Bezel
OER part #3921833 installs on the inner driver-side door panel and supports the remote mirror control.
The bezel features a textured pebble-grain chrome finish designed to reproduce the original appearance. The included reinforcement bracket and retaining clip secure the remote-control assembly behind the door panel.
This set includes:
- Remote-control bezel
- Reinforcement bracket
- Retaining clip
- Mounting screws
The bezel is a functional mounting component as well as a visible interior trim piece.
Passenger-Side Manual Mirror
OER mirror #20154908 installs on the right-hand passenger side and is adjusted manually from outside the vehicle.
The passenger-side mirror does not use:
- A remote-control cable
- An interior adjustment control
- A remote swivel cable assembly
The passenger mirror glass does not display the later “Objects Are Closer Than They Appear” warning text, helping maintain an earlier factory-style appearance.
Primered Finish Ready for Paint
Both exterior mirror housings arrive in primer and are not supplied in a finished body color.
Before painting:
- Inspect both mirror housings and primered surfaces.
- Test-fit the driver- and passenger-side mirrors.
- Confirm that each mounting bracket aligns with the corresponding door.
- Verify that both mirror-to-door gaskets follow the door contours.
- Route and test the driver-side remote cable.
- Test-fit the driver-side remote-control bezel and retainer.
- Clean the mirror housings with a product compatible with the selected paint system.
- Scuff, seal or re-prime the surfaces as required.
- Apply the appropriate exterior finish.
- Allow the paint to cure completely before final installation.
Professional paint preparation and finishing are recommended. Final color match depends on the materials, application process and condition of the vehicle’s existing paint.
Do not paint or permanently modify either mirror until the entire package has been test-fitted.
Product Details
- Brand: OER
- Package type: 100% Complete PRO Pack
- Included part numbers: 9865801, R313, 3921833, 20154908 and R312
- Product type: Complete left-and-right exterior bullet-mirror system
- Mirror style: Bullet or sport mirror
- Driver-side position: Left hand
- Driver-side adjustment: Mechanical remote
- Driver-side remote cable: Preinstalled
- Driver-side interior control components: Included
- Passenger-side position: Right hand
- Passenger-side adjustment: Manual
- Mirror-housing material: Die-cast zinc
- Mirror-housing finish: Primered
- Final finishing: Preparation and paint required
- Mirror glass: Included on both sides
- Driver-side mounting kit: Included
- Passenger-side mounting kit: Included
- Mirror-to-door gaskets: Included
- Driver-side remote-control bezel: Included
- Reinforcement bracket and retaining clip: Included
- Condition: New reproduction
- Quantity: One complete driver- and passenger-side mirror package
Restoration Uses
This complete mirror package is suitable for:
- Replacing missing driver- and passenger-side mirrors
- Replacing damaged or corroded mirror housings
- Replacing scratched, cloudy or broken mirror glass
- Replacing a seized driver-side remote mechanism
- Replacing a damaged driver-side remote cable
- Replacing missing exterior mirror mounting brackets
- Replacing deteriorated mirror-to-door gaskets
- Replacing a missing driver-side remote-control bezel
- Correcting mismatched driver- and passenger-side mirrors
- Completing a 1970-1981 Camaro restoration
- Completing a 1970-1981 Firebird or Trans Am restoration
- Converting an incomplete sport-mirror installation into a complete system
Installation Notes
Remove the interior door panels carefully and retain any original components needed for reference.
Driver-Side Installation
- Compare the replacement mirror with the original assembly.
- Confirm that R313 aligns with the factory mounting location.
- Position the driver-side gasket evenly against the door.
- Route the preinstalled remote cable through the factory opening.
- Avoid bends, twists and pinch points.
- Position the reinforcement bracket behind the interior door panel.
- Install the retaining clip and chrome remote-control bezel.
- Verify that the cable and mirror move freely.
- Tighten the exterior and interior mounting points evenly.
- Test the full mirror-adjustment range before reinstalling the door panel.
Passenger-Side Installation
- Confirm that R312 aligns with the passenger-side mounting location.
- Position the passenger-side gasket against the door.
- Install the mirror and mounting bracket.
- Tighten the attachment points evenly.
- Adjust the mirror glass manually.
- Confirm that the mirror has an unobstructed adjustment range.
Do not overtighten the mirrors or interior bezel. Excessive pressure can damage the door surfaces, gaskets, brackets, mirror housings or interior door panel.
If the vehicle was not originally equipped with dual bullet mirrors, confirm the correct factory locations before drilling or cutting.
Frequently Asked Questions
What vehicles fit this PRO Pack?
It fits applicable 1970-1981 Chevrolet Camaro and Pontiac Firebird models equipped with the factory-style dual bullet or sport-mirror configuration.
Does it fit a Pontiac Trans Am?
Yes. It fits applicable 1970-1981 Pontiac Trans Am models using the corresponding factory-style sport mirrors.
Does it fit a Camaro Z28?
Yes. It fits applicable 1970-1981 Camaro Z28 models equipped with the corresponding dual bullet mirrors.
Are both driver- and passenger-side mirrors included?
Yes. This PRO Pack includes one driver-side remote mirror and one passenger-side manual mirror.
Is the driver-side remote cable included?
Yes. The mechanical remote-control cable is preinstalled in driver-side mirror #9865801.
Is the driver-side mounting kit included?
Yes. Driver-side mounting kit #R313 is included.
Is the passenger-side mounting kit included?
Yes. Passenger-side mounting kit #R312 is included.
Is the interior remote-control bezel included?
Yes. Part #3921833 provides the driver-side remote-control bezel and its related retaining components.
What is included with part #3921833?
It includes the textured chrome remote-control bezel, reinforcement bracket, retaining clip and mounting screws.
Is the passenger-side mirror remote adjustable?
No. Passenger-side mirror #20154908 is adjusted manually from outside the vehicle.
Are the mirror housings painted?
No. Both mirror housings arrive in primer and require preparation and paint before final installation.
What are the mirror housings made from?
Both mirror housings are manufactured from die-cast zinc.
Is mirror glass included?
Yes. Both mirror assemblies include their corresponding mirror glass.
Does the passenger glass include warning text?
No. The passenger mirror glass does not display the later “Objects Are Closer Than They Appear” warning.
Is this a complete left-and-right mirror package?
Yes. The package includes both exterior mirrors, both side-specific mounting kits and the driver-side interior remote-control bezel and retainer set.
Can this kit be installed on a vehicle without factory bullet mirrors?
A conversion may be possible, but the doors and driver-side interior panel must have the correct mounting and remote-control locations. Additional modifications may be required.
