Product Description:

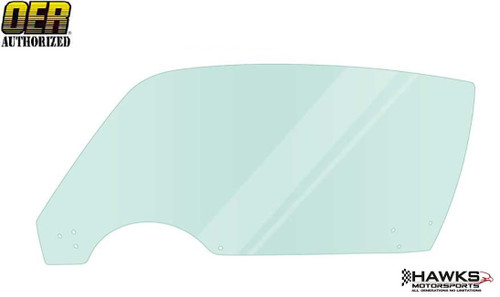

Hawks Motorsports is pleased to offer our clients the following: new reproduction Soft-Ray-style tinted passenger-side door window glass for the 1970-1981 Chevrolet Camaro, Pontiac Firebird, Formula and Trans Am, OER part #FD4705.
Replace scratched, cracked, chipped or missing right-hand door glass with this factory-style reproduction. The window is manufactured from tempered safety glass with the correct shape and curvature for the second-generation F-body passenger door.
The light-green tint is designed to coordinate with vehicles originally equipped with tinted glass. Because factory glass options and previous replacements can vary, compare this window with the vehicle’s windshield, driver-side window, quarter glass and rear glass before ordering.
Key Features
- New reproduction passenger-side door window glass
- Right-hand passenger-side application
- Soft-Ray-style light-green tint
- Tempered safety-glass construction
- Correct factory-style shape and curvature
- Designed to install in the original F-body door location
- Fits applicable 1970-1981 Chevrolet Camaro models
- Fits applicable 1970-1981 Pontiac Firebird models
- Fits applicable Firebird Formula and Trans Am models
- No reproduction date code
- OER Authorized reproduction
- OER part #FD4705
- Sold individually
Fitment Applications
1970-1981 Chevrolet Camaro
Fits applicable second-generation Camaro models requiring light-green-tinted passenger-side door glass, including:
- Camaro Sport Coupe
- Camaro Rally Sport
- Camaro Super Sport
- Camaro Z28
- Camaro Type LT
- Camaro Berlinetta
Trim and factory glass-option availability vary by model year.
1970-1981 Pontiac Firebird
Fits applicable second-generation Pontiac models requiring light-green-tinted passenger-side door glass, including:
- Pontiac Firebird
- Pontiac Firebird Esprit
- Pontiac Firebird Formula
- Pontiac Firebird Trans Am
Important 1970 Fitment Note
OER specifies FD4705 for the second-design 1970 door-glass configuration. The catalog describes this as the late-production design associated with production beginning around January 1971.
Early-production 1970 vehicles must be inspected before ordering. Compare the replacement glass, attachment locations and window-guidance system with the original components.
Some retailers simplify the listed application to 1971-1981 because of this production-design distinction.
Important Glass-Option Requirements
- Fits the right-hand passenger side only
- Designed for factory-style tinted-glass applications
- Features a light-green Soft-Ray-style tint
- Does not match clear, non-tinted door glass
- Verify the glass color in natural daylight
- Compare the tint with the vehicle’s remaining glass
- Confirm the 1970 first- or second-design configuration
- Designed for second-generation Camaro and Firebird coupe doors
- Sold as one passenger-side window
Soft-Ray Light-Green Tint
FD4705 is manufactured with a light-green tint commonly described as Soft-Ray-style glass.
Tinted automotive glass can appear nearly clear under some lighting conditions. The green coloration is usually easier to identify by:
- Viewing the glass edge in natural daylight
- Holding white paper behind the window
- Comparing it with known clear glass
- Checking the windshield, driver-side window and quarter glass
- Looking through multiple layers of the glass near an edge
This window should be used when the vehicle requires the tinted passenger-side configuration.
Matching Driver-Side Glass
The corresponding tinted driver-side window is OER #FD4706.
For a coordinated tinted pair, use:
- FD4706: Left-hand driver-side tinted door glass
- FD4705: Right-hand passenger-side tinted door glass
Replacing both sides together may provide a more consistent tint and overall appearance, especially when the remaining driver-side glass is scratched, damaged or an incorrect clear replacement.
Clear Versus Tinted Door Glass
Second-generation Camaro and Firebird door glass was produced in clear and tinted configurations.
The available OER applications are:
- FD4704: Clear driver-side glass
- FD4703: Clear passenger-side glass
- FD4706: Tinted driver-side glass
- FD4705: Tinted passenger-side glass
Do not order solely by vehicle year or air-conditioning status. Confirm the glass option presently installed in the vehicle because factory equipment, production changes and previous repairs can affect the application.
Mixing clear and tinted door glass can create a noticeable difference between the driver and passenger sides.
Product Details
- Brand: OER Authorized
- Part number: FD4705
- Product type: Front door window glass
- Vehicle platform: Second-generation GM F-body
- Chevrolet application: Camaro
- Pontiac applications: Firebird, Esprit, Formula and Trans Am
- Model years: 1970-1981
- Position: Right-hand passenger side
- Glass color: Light green
- Tint type: Soft-Ray style
- Construction: Tempered safety glass
- Shape and curvature: Factory style
- Date code: Not included
- 1970 application: Second-design configuration
- Condition: New reproduction
- Quantity: One passenger-side door window
What This Listing Includes
This listing includes:
- One OER #FD4705 light-green-tinted passenger-side door window
The driver-side glass, window regulator, tracks, rollers, guides, stops, weatherstripping and window felts are sold separately.
Restoration Uses
OER #FD4705 is suitable for:
- Replacing scratched passenger-side door glass
- Replacing cracked, chipped or broken glass
- Replacing a missing passenger-side window
- Correcting mismatched clear and tinted door glass
- Replacing glass with incorrect curvature
- Restoring a Camaro with factory-style tinted glass
- Restoring a Firebird, Formula or Trans Am
- Rebuilding the passenger-side window system
- Completing a body or interior restoration
- Preparing the door for new window felts and weatherstripping
Tempered Safety-Glass Construction
The window is manufactured from tempered automotive safety glass.
Tempered glass is heat-treated to increase strength. When severely damaged, it is designed to break into smaller pieces instead of the large, sharp sections typically produced by untreated glass.
Any cracked, deeply chipped or structurally damaged door glass should be replaced.
Installation and Adjustment Notes
Correct installation requires careful adjustment of the passenger-side regulator, tracks, rollers, guides, stops and weatherstripping.
Before completing installation:
- Compare FD4705 with the original passenger-side window.
- Confirm that the light-green tint matches the remaining vehicle glass.
- Verify the 1970 door-glass design when applicable.
- Inspect the passenger-side regulator and tracks.
- Check the rollers, guides and stops for wear or damage.
- Inspect the window felts and weatherstripping.
- Protect the painted door and interior trim.
- Install the glass without forcing it against the tracks or door structure.
- Adjust the glass for even contact with the weatherstripping.
- Check alignment with the windshield pillar and quarter glass.
- Raise and lower the window repeatedly.
- Confirm that the glass does not bind, scrape or contact the door structure.
- Check for excessive wind noise and water intrusion after final adjustment.
Professional installation is recommended. Incorrect adjustment can cause binding, scratches, leaks, wind noise or glass breakage.
Shipping and Inspection
Door glass requires oversized protective packaging. OER and its retailers classify FD4705 as a double-oversize shipment.
Inspect the shipping carton and glass immediately upon delivery. Report visible carton damage to the carrier and retain all packaging until the window has been fully inspected.
Do not schedule installation until the glass has arrived and been confirmed undamaged.
Retailer package dimensions and shipping weight should not be interpreted as the physical dimensions or weight of the glass itself.
Care and Cleaning
Clean the window with automotive glass cleaner and a soft microfiber cloth.
Avoid abrasive pads, metal scrapers and harsh chemicals. Keep the window felts and guides clean because trapped debris or deteriorated felt can scratch the new glass as it moves.
Frequently Asked Questions
What vehicles fit OER FD4705?
It fits applicable 1970-1981 Chevrolet Camaro, Pontiac Firebird, Formula and Trans Am models requiring light-green-tinted passenger-side door glass.
Which side does FD4705 fit?
FD4705 fits the right-hand passenger side.
Is FD4705 tinted?
Yes. It is manufactured from light-green-tinted tempered glass commonly described as Soft-Ray-style glass.
Is this clear glass?
No. FD4705 is the tinted passenger-side version. OER #FD4703 is the corresponding clear passenger-side glass.
What is the matching tinted driver-side part number?
OER #FD4706 is the matching light-green-tinted driver-side door glass.
Does it fit a Camaro Z28?
Yes. It fits applicable 1970-1981 Camaro Z28 models requiring the corresponding tinted passenger-side door glass.
Does it fit a Pontiac Trans Am?
Yes. It fits applicable 1970-1981 Pontiac Trans Am models requiring the corresponding tinted passenger-side window.
Does it fit a Firebird Formula?
Yes. Formula models are included under the applicable second-generation Firebird fitment.
Does FD4705 fit a 1970 Camaro or Firebird?
It fits vehicles using the second-design 1970 door-glass configuration. Early-production vehicles must be inspected before ordering.
Why do some catalogs list it as 1971-1981?
Some retailers simplify the application because OER identifies the 1970 fitment as a second-design, late-production configuration. Verify an applicable 1970 vehicle before ordering.
Is FD4705 made from tempered glass?
Yes. It is manufactured from tempered automotive safety glass.
Does the glass include a date code?
No. Current product information identifies FD4705 as having no reproduction date code.
Is the driver-side window included?
No. This listing includes one passenger-side window only. The matching driver-side glass is FD4706.
Are the window regulator and tracks included?
No. The regulator, tracks, rollers, guides, stops, weatherstripping and window felts are sold separately.
Can clear and tinted door glass be mixed?
They may physically interchange within the corresponding application, but mixing them can create a visible color mismatch.
Is professional installation recommended?
Yes. Proper alignment is essential for smooth operation, correct sealing and preventing damage to the glass.
