Product Description:
Free Quote Form
Hawks Motorsports offers our clients this 1973-1987 Chevrolet/GMC C-Series Pickup Truck TREMEC TKX 5-Speed Conversion Kit | 600 lb-ft Capacity | C-SERIES-TKX-7387. This RestoFit™ conversion system upgrades classic GM Squarebody trucks with a modern overdrive manual transmission designed for improved drivability, increased drivetrain strength, and better highway performance.
Vehicle Configuration Required
Transmission conversion kits are vehicle specific. Complete the Hawks Motorsports Transmission Conversion Request Form before ordering so our team can verify compatibility and confirm the correct components for your application.
The TREMEC TKX 5-Speed is one of the most compact modern manual transmissions available and is engineered to provide classic Chevrolet and GMC C-Series trucks with modern performance and reliability. The compact rounded case design helps reduce or eliminate transmission tunnel modifications while maintaining proper driveline alignment.
Designed for street-driven and performance applications, the TREMEC TKX can handle up to 600 lb-ft of torque and supports shifts up to 7,500 RPM. The overdrive fifth gear provides reduced engine RPM during highway cruising, helping improve fuel economy, reduce engine wear, and create a more comfortable driving experience.
This conversion kit is designed for 1973-1987 Chevrolet and GMC C-Series pickup trucks including C10, C20, C30, and GMC C-Series applications. It is an ideal upgrade for restoration projects, LS engine swaps, performance builds, and owners looking to replace outdated factory transmissions with modern manual transmission technology.

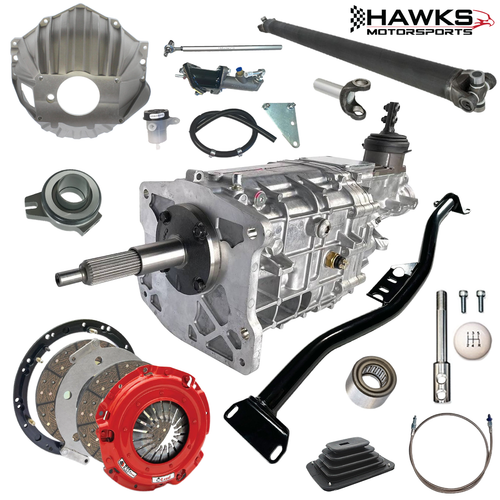

The conversion kit includes the TREMEC TKX 5-Speed overdrive transmission components, bellhousing, McLeod clutch and flywheel, hydraulic clutch conversion components, crossmember, driveshaft and slip yoke assembly, speedometer connection components, reverse light connector, installation hardware, and detailed installation instructions.
Additional components may be required depending on engine combination, clutch configuration, drivetrain setup, and vehicle options. Automatic-to-manual conversions require additional components compared to factory manual transmission trucks.
The TREMEC TKX is supplied as a new transmission assembly and is not a rebuilt or remanufactured unit. Verify drivetrain specifications before ordering to ensure proper fitment.
KEY FEATURES:
- TREMEC TKX 5-Speed manual conversion kit for 1973-1987 Chevrolet and GMC C-Series trucks
- Designed for Squarebody C-Series pickup applications
- 600 lb-ft torque capacity for performance and street applications
- Compact rounded transmission case for reduced or eliminated cutting
- Capable of 7,500 RPM shifts
- 30-50% increase in fuel economy potential compared to traditional non-overdrive transmissions
- Low RPM highway cruising for improved comfort
- Reduced noise, vibration, and harshness (NVH)
- Compatible with mechanical and hydraulic clutch actuation systems
- Wide Ratio Gear Set: 3.27, 1.98, 1.34, 1.00, 0.72
- Close Ratio Gear Set: 2.87, 1.89, 1.28, 1.00, 0.68 OR 0.81
- TREMEC TKX 5-Speed Overdrive Transmission
- Heavy-duty needle roller pilot bearing with lubrication seal
- Bellhousing included
- McLeod Flywheel included
- McLeod Clutch included
- Hydraulic Clutch Kit included
- Rubber isolator mount for vibration reduction
- Optional heavy-duty polyurethane isolator available for performance applications
- Waterproof reverse light connector
- Mechanical and electronic speedometer compatibility
- Custom lightweight steel driveshaft and slip yoke assembly
- Dynamically balanced driveshaft for smooth operation
- Crossmember included for proper driveline alignment
- Complete installation hardware included
- Detailed installation instructions included
- Lifetime technical support available
INCLUDED COMPONENTS:
- TREMEC TKX 5-Speed Overdrive Transmission
- Pilot Bearing
- Bellhousing
- McLeod Flywheel
- McLeod Clutch
- Hydraulic Clutch Kit
- Installation Hardware
- Isolator Mount
- Crossmember
- Reverse Light Connector
- Speedometer Connection Components
- Driveshaft and Slip Yoke Assembly
- Detailed Installation Instructions
FITMENT APPLICATIONS
| Make | Model | Years |
|---|---|---|
| Chevrolet | C10/C20/C30 Pickup Trucks | 1973-1987 |
| GMC | C-Series Pickup Trucks | 1973-1987 |
Verify fitment before ordering. Engine combination, transmission configuration, clutch system, driveshaft requirements, and drivetrain specifications must be confirmed before purchase.
INSTALLATION NOTES:
- This conversion kit requires vehicle-specific verification before purchase.
- Complete the Hawks Motorsports Transmission Conversion Request Form to confirm compatibility.
- Additional components may be required depending on engine, clutch, and vehicle configuration.
- Automatic-to-manual conversions require additional components including clutch, flywheel, hydraulic clutch components, and related hardware.
- Professional installation is recommended due to drivetrain modifications and vehicle-specific requirements.
- Verify all vehicle specifications before installation.
- Installed or modified components may not be eligible for return. Confirm application details before installation.
