Product Description:
Hawks Motorsports is pleased to offer our clients the following.

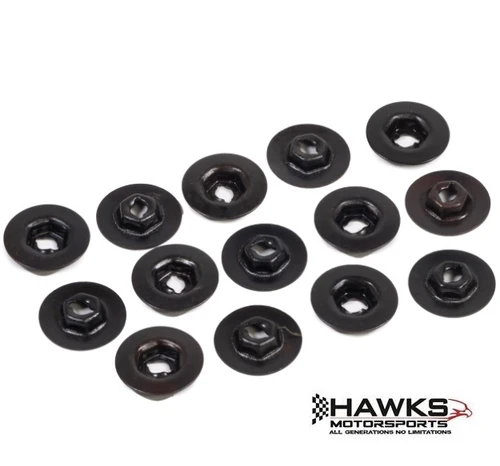

This 14-piece retainer-nut set is designed for compatible 1982-1992 Chevrolet Camaro, Pontiac Firebird and Pontiac Trans Am inner door panel top rails.
The retainers secure the upper inner door panel top rails to the door panel boards. They are useful when the original retainers are missing, damaged or unsuitable for reuse during door-panel restoration.
Each package contains seven retainers for the driver-side top rail and seven for the passenger-side top rail. This listing includes the retainer nuts only.
| Feature | Product specification |
|---|---|
| Product type | Inner door panel top rail retainer-nut set |
| Vehicle platform | Third-generation GM F-Body |
| Model years | 1982-1992 |
| Installation location | Upper inner door panel top rails |
| Positions serviced | Driver and passenger sides |
| Quantity | 14 retainer nuts |
| Quantity per side | Seven |
| Related top rail | DP92 |
| Part number | DP92-RET14 |
- Fourteen inner door panel top rail retainer nuts
- Seven retainers for the driver-side top rail
- Seven retainers for the passenger-side top rail
- Enough retainers to service one compatible pair of top rails
Door panels, upper top rails, window felts, ribbed door-panel push-pin clips and other components are not included.
Inner Door Panel Top Rail Application
These retainers are used on the studs that extend through the door panel board from the upper inner door panel top rail. Once installed from the rear of the panel, they hold the top rail against the door panel board.
They are intended for compatible top rails equipped with seven mounting studs per side. The retainers are not side-specific.
Important Application Notes and Exclusions
- This listing contains the 14 retainer nuts only
- Designed for the upper inner door panel top rails
- Not intended for rear hatch or cargo-area trim
- Not the ribbed push-pin clips used to attach the main door panel to the metal door shell
- Does not repair broken, missing or substantially modified top-rail studs
- Requires intact and compatible mounting studs
- Designed to service two top rails with seven studs on each rail
Before installation, verify that all 14 top-rail studs are intact and that their size and shape match the replacement retainers. Previously repaired or modified door panels and top rails may require individual evaluation.
| Application | Required configuration |
|---|---|
| 1982-1992 Chevrolet Camaro |
Compatible top rail with seven studs per side |
| 1982-1992 Pontiac Firebird and Formula |
Compatible top rail with seven studs per side |
| 1982-1992 Pontiac Trans Am |
Compatible top rail with seven studs per side |
Confirm the number, condition, size and shape of the installed top-rail studs before ordering. These retainers should not be selected solely by vehicle model year when the door panels or top rails have been replaced or modified.
Remove the interior door panel and work from its rear side to access the upper top rail retainers.
- Carefully remove the existing retainers without twisting or breaking the plastic top-rail studs
- Inspect every mounting stud for cracks, damage or previous modification
- Position the rail studs through the corresponding openings in the door panel board
- Press one retainer onto each undamaged stud from the rear of the panel
- Support the surrounding panel board while installing each retainer
- Avoid excessive force when working with aged plastic studs or weakened panel-board material
- Confirm that the top rail sits evenly and securely across the door panel
- Reinstall the completed door panel and verify proper alignment
Do not install a retainer on a broken or incompatible stud. These retainers will not restore the strength of a damaged top rail or repair deteriorated door panel board material.
What does DP92-RET14 include?
The package contains 14 inner door panel top rail retainer nuts. Door panels, top rails, window felts and other components are not included.
How many retainer nuts are used on each side?
The compatible top rails use seven retainers per side. The 14-piece package services both the driver and passenger sides.
What years and models do these retainers fit?
They are intended for compatible inner door panel top rails used on 1982-1992 Chevrolet Camaro and Pontiac Firebird models, including Formula and Trans Am applications.
Are the retainers side-specific?
No. The package contains enough retainers to service both compatible upper door panel top rails.
Do these retainers attach the door panel directly to the metal door shell?
No. They secure the upper inner top rail to the door panel board. They are different from the ribbed push-pin clips used elsewhere on the door panel.
Will these retainers repair broken top-rail studs?
No. The retainers require intact and compatible studs. A top rail with broken, missing or substantially modified studs must be repaired or replaced separately.
Are the DP92 top rails included?
No. DP92-RET14 is the retainer-nut package only. Compatible top rails are available separately under part number DP92.
Do these retainers require drilling or modification?
No modification should be necessary when the door panel and compatible top-rail studs are intact and properly aligned. Previously repaired or modified components may require individual evaluation.
