Product Description:
Hawks Motorsports is pleased to offer our clients the following.
This new reproduction fan-shroud fastener kit is designed for compatible 1982-1992 Chevrolet Camaro, Pontiac Firebird and Trans Am cooling systems.

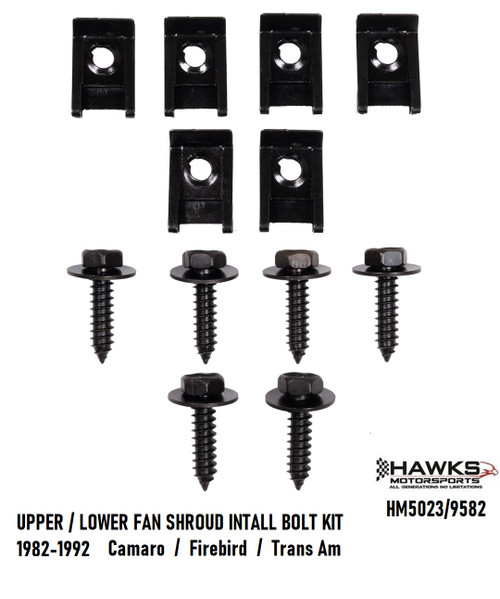

The kit supplies six screws and six matching U-nut clips for securing the applicable upper and lower fan-shroud sections. It replaces missing, rusted, damaged, stripped or mismatched original fasteners while restoring a cleaner and more consistent engine-compartment appearance.
Although this product is commonly described as a “set of six,” it contains six complete screw-and-clip fastening sets for a total of 12 individual components.
Key Features
| Feature | Product specification |
|---|---|
| Producer | Hawks Restoration Parts |
| Product type | Fan-shroud fastener kit |
| Vehicle platform | Third-generation GM F-Body |
| Model years | 1982-1992 |
| Installation locations | Upper and lower fan shrouds |
| Screw quantity | Six |
| U-nut clip quantity | Six |
| Complete fastening sets | Six |
| Total individual components | Twelve |
| Original-part references | GM 11505023 and 11509582 |
| Condition | New reproduction |
This Product Includes
| Component | Quantity | Intended function |
|---|---|---|
| Fan-shroud screws | 6 | Secure the applicable shroud sections |
| Extruded U-nut clips | 6 | Provide the threaded attachment points |
| Complete screw-and-clip sets | 6 | Upper and lower fan-shroud installation |
| Total individual components | 12 |
The fan shroud, cooling fan, radiator, radiator insulators and fan-mounting brackets are not included.
Six Complete Fastening Sets
Each fastening set consists of one screw and one matching U-nut clip. The complete package therefore contains:
- Six screws
- Six U-nut clips
- Six matched fastening locations
- Twelve individual pieces
This count distinction is important when comparing the kit with incomplete sets that may contain only screws or only clips.
Upper and Lower Fan-Shroud Application
The fasteners are intended for applicable attachment locations on the upper and lower fan-shroud sections used in third-generation Camaro and Firebird cooling systems.
Cooling-system configurations varied by model year, engine, air-conditioning equipment and single- or dual-electric-fan arrangement. Not every vehicle necessarily uses every supplied fastener in precisely the same location.
Compare the replacement pieces with the original screws and U-nut clips before installation.
Year / Model Interchange
| Years | Make | Model | Application |
|---|---|---|---|
| 1982-1992 | Chevrolet | Camaro | Compatible upper and lower fan-shroud locations |
| 1982-1986 | Pontiac | Firebird Base | Compatible upper and lower fan-shroud locations |
| 1982-1986 | Pontiac | Firebird S/E | Compatible upper and lower fan-shroud locations |
| 1987-1992 | Pontiac | Firebird | Compatible upper and lower fan-shroud locations |
| 1987-1992 | Pontiac | Firebird Formula | Compatible upper and lower fan-shroud locations |
| 1982-1992 | Pontiac | Trans Am | Compatible upper and lower fan-shroud locations |
| 1987-1992 | Pontiac | Trans Am GTA | Compatible upper and lower fan-shroud locations |
Potential Camaro applications include properly equipped Sport Coupe, Berlinetta, LT, RS, Z28 and IROC-Z models.
Important Application Notes
- Fits compatible 1982-1992 GM F-Body fan-shroud applications
- Includes fasteners for applicable upper and lower shroud positions
- Contains six screws and six U-nut clips
- Provides six complete fastening sets
- Contains 12 individual components in total
- Cooling-system configurations vary by model year and engine
- Single- and dual-fan systems may use different shroud arrangements
- Compare the supplied pieces with the original fasteners
- Inspect the fan shroud for cracked or enlarged attachment points
- Do not overtighten screws against aged plastic
The kit is intended for original-style fan-shroud attachment locations. Compatibility with fabricated shrouds, universal electric-fan assemblies or heavily modified cooling systems should not be assumed.
Original-Part References
The components in this kit are associated with the following original GM references:
| GM reference | Component type |
|---|---|
| 11505023 | Fan-shroud screw |
| 11509582 | Extruded U-nut clip |
HM5023/9582 is the inventory number for the complete reproduction kit. It combines the two fastener types required to create six matched attachment sets.
Original fastener finishes, head markings and supplier details may have varied during production.
Why Replace the U-Nut Clips?
Original U-nut clips can become rusted, bent, stripped or weakened after repeated fan-shroud removal. A damaged clip may fail to hold the screw correctly or may turn during installation.
Replacing the screw and clip together helps create a consistent attachment point. The receiving panel and fan-shroud opening must still be inspected for cracking, distortion or previous modification.
Reproduction Information
This is a newly manufactured reproduction fastener kit. It is not used, New Old Stock or an original GM service package.
The screws and clips are designed to reproduce the general fit and function of the applicable original components. Minor differences in finish, markings or manufacturing details may exist when compared with assembly-line pieces.
Installation Information
Before installation:
- Allow the engine and cooling system to cool completely
- Disconnect the vehicle battery when working near an electric cooling fan
- Remove the original fan-shroud sections carefully
- Record the location of each original fastener
- Compare the replacement screws and clips with the originals
- Inspect every U-nut mounting edge
- Check the shroud attachment openings for cracks
- Slide each U-nut clip squarely over its mounting edge
- Align the shroud before starting the screws
- Start every screw by hand
- Tighten only until the shroud is secure
- Confirm clearance between the shroud and fan blades
- Verify that the cooling fan rotates without contacting the shroud
- Recheck the complete installation before operating the vehicle
Electric cooling fans can activate unexpectedly. Keep hands, clothing and tools away from the fan blades whenever the electrical system is connected.
Do not overtighten the screws. Excessive force can strip the U-nut clips or crack an aged plastic fan shroud.
PART NUMBER
HM5023/9582
FREQUENTLY ASKED QUESTIONS
What is included?
The package contains six fan-shroud screws and six matching U-nut clips.
What are the U-nut clips used for?
The clips slide over the applicable mounting edges and provide threaded attachment points for the fan-shroud screws.
Does the kit cover upper and lower fan-shroud locations?
Yes. It is intended for compatible upper and lower fan-shroud attachment points.
Does it fit a Camaro?
Yes. It is intended for compatible 1982 Camaro fan-shroud applications.
Does it fit a Pontiac Firebird?
Yes. It fits compatible 1982-1992 Pontiac Firebird fan-shroud applications.
Does it fit both V6 and V8 models?
The kit is cataloged for compatible 1982-1992 Camaro and Firebird applications. Because shroud configurations vary by engine and cooling package, compare the supplied fasteners with the originals.
Does it fit single-fan systems?
It may be used at compatible attachment locations on original-style single-fan shrouds. Compare the original configuration before installation.
Does it fit dual-fan systems?
It may be used at compatible upper and lower shroud attachment locations on applicable dual-fan systems. Fan arrangements vary by year and equipment.
What original GM numbers are associated with the kit?
The replacement components reference GM numbers 11505023 and 11509582.
Is this an original GM kit?
No. It is a newly manufactured reproduction kit.
Can the kit repair a cracked fan shroud?
No. The fasteners cannot repair cracked, broken or enlarged fan-shroud attachment points. Repair or replace the damaged shroud before installation.
