Product Description:
Adjustable Torque Arm with Selected Crossbar, Satin Black for 1982-2002 Chevrolet Camaro / Pontiac Firebird. The short torque-arm package transfers its front mounting load to a chassis-mounted crossbar rather than the transmission. Its adjuster allows the torque-arm setup to be changed on the vehicle.

| Feature | Product specification |
|---|---|
| Condition | New performance package |
| Selection | One straight or dipped crossbar |
| Front mounting | Welded chassis/subframe-connector crossbar |
| Tube | 1.250 × 0.095-inch DOM steel |
| Finish | Satin black powder coat |
| Verified application | 1982-2002 Chevrolet Camaro / Pontiac Firebird |
| Hawks identifier | HS-2235-SB / HS-2236-SB |

| Year | Model and required configuration |
|---|---|
| 1982 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1983 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1984 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1985 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1986 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1987 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1988 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1989 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1990 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1991 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1992 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1993 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1994 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1995 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1996 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1997 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1998 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 1999 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 2000 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 2001 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |
| 2002 | Chevrolet Camaro / Pontiac Firebird; compatible rear torque-arm mount; welded crossbar installation; select exhaust-clearance style |

- One adjustable torque arm
- One selected crossbar: straight HS-2236-SB or dipped HS-2235-SB
- Supplied mounting pieces for the selected version

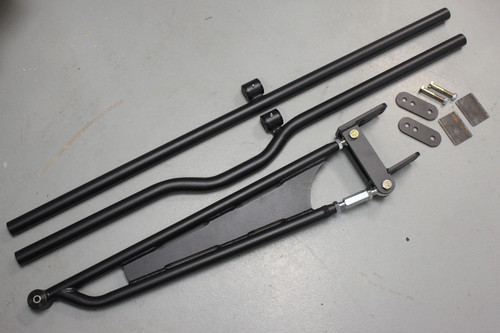

Choose the straight crossbar, HS-2236-SB, or the dipped crossbar, HS-2235-SB, for the actual exhaust clearance. Both bars appear in the comparison photograph; only the selected bar is supplied.
The maker specifies 1.250 × 0.095-inch DOM tube, TIG welding, 4140 chrome-moly adjustment hardware and a greasable Energy Suspension polyurethane bushing. The crossbar is welded to the body or suitable subframe connectors; the maker recommends the connector attachment.

Have a qualified installer position the crossbar, verify driveline and exhaust clearance and follow the applicable welding procedure. Set pinion angle and suspension geometry for the actual car. Check fasteners, bushing retention and full travel.

Are both crossbars included?
No. Select one.
Which code is straight?
HS-2236-SB.
Which code is dipped?
HS-2235-SB.
Is it the transmission-mounted torque arm?
No. This package uses a welded chassis crossbar.
Why choose a dipped crossbar?
To suit the actual larger-exhaust clearance requirement.
