Product Description:

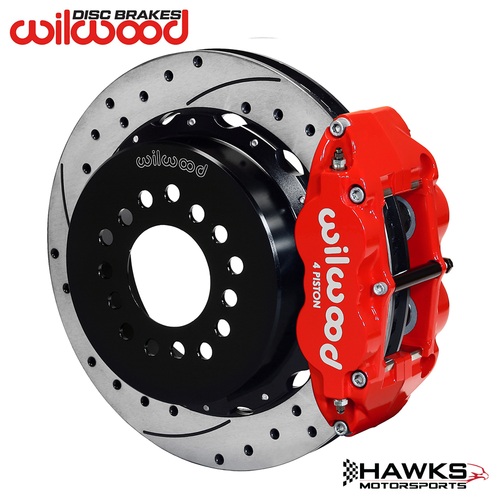

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Kit Summary
Rear End Axle: 12 Bolt
Axle Offset: 2.75
Mount Type: Radial
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
Notes
1. For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
2. Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.
THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
