Product Description:
Our Engine Controller Kits are designed for installing these new GM EFI engines into your ride, whatever it may be. The harness included with this kit is specific for Gen IV 58x engines with a 6L80e/6L90e Transmission. All Gen IV Controller Kits are REQUIRED to be Drive By Wire (Electrical Throttle Body)
2014+ 6.0 Applications That Were Originally an E78 Application Will Require An Older 09+ Throttle Body (6 pin — 3 over 3 pin)
IF YOU CHOOSE TO HAVE US FLASH YOUR T43 TCM AND IT DOES NOT ARRIVE WITHIN 30 DAYS OF PURCHASE, YOUR TCM FLASH WILL BE CANCELLED AND REFUNDED. ORDER WILL THEN BE SHIPPED.
Features
- GM Color Coded TXL (Cross Linked) Wire
- Delphi OEM Connectors and Terminals
- Heat sleeving protection in high temperature areas
- Delphi Sliding Grommet to seal the firewall
- Harness is 5 foot long from the rear passenger side of the engine
- ECM can be mounted inside for a clean install
- All non essential sensors and emissions are removed (Emissions can be added for an additional charge, call to inquire)

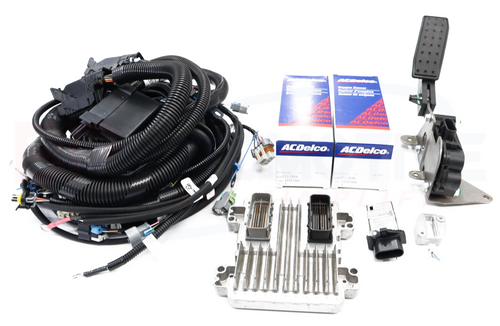

What’s Included
- Brand New Stand-alone harness
- ECM with start up tune
- GM ECM mounting bracket
- New Delphi LS3 Card Style Mass Air Flow (MAF)
- 2 New AC Delco Oxygen Sensors
- GM Accelerator Pedal **DUE TO SUPPLY ISSUES YOU MAY RECEIVE EITHER THE CAMARO PEDAL (22741799) OR CORVETTE PEDAL (19417903) **
