Product Description:
Direct fit, bolt in replacement aluminum radiator for 2010 Camaro/ Z28 with a 6 CLY engine (2.25" Core). The core is 2.25" thick, compared to the stock core that is 5/8" thick.

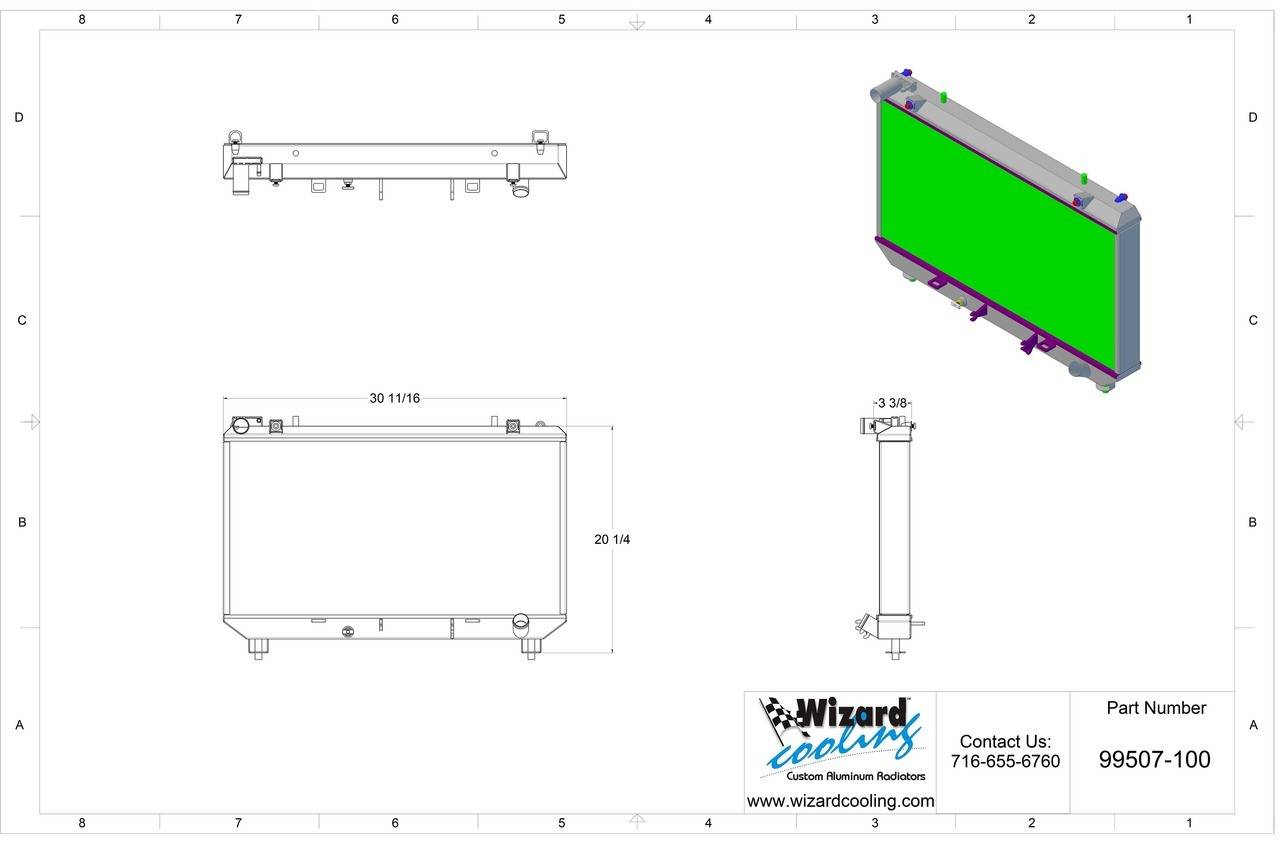

VIEW DRAWING
VIEW DRAWING
| Specification | Value |
|---|---|
| Shroud | No |
| Electric Fans | No |
| Critical Thickness | 3.00 IN |
| Core Thickness | 2.25 in (Standard High Performance Core) |
| Transmission Oil Cooler | No |
| Expansion Tank Included | No |
| Inlet Location | Driver Side |
| Outlet Location | Passenger Side |
| Mounting Type | Pin |
| Tube Inside Diameter | 1 IN |
| Tank Material | Aluminum |
| Outlet Header Width | 3 IN |
| Outlet Header Length | 27.25 IN |
| Outlet Diameter | 1.375 IN |
| Inlet Header Width | 3 IN |
| Inlet Header Length | 27.25 IN |
| Inlet Diameter | 1.375 IN |
| Cooling Type | Down Flow |
| Core Width | 27.25 IN |
| Core Height | 15.50 IN |
| Core Rows | 2 |
| Core Material | Aluminum |
| Package | Radiator Only |
| Availability | Current Build Time 6–8 Weeks |
