Product Description:
Legality Note:
- Not legal for sale or installation in California, Colorado or New York.

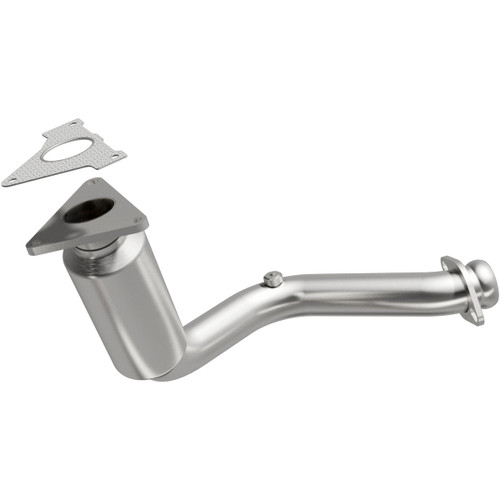

Keep the check engine light off with MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 23517. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 1995-1997 Chevrolet Camaro 5.7L & 1995-1997 Pontiac Firebird 5.7L. MagnaFlow 23517 includes (1) O2 Port Plug, (1) Flange Gasket. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.
- Durable 308 stainless steel MIG welds
- Simplifies installation with essential gaskets and hardware being included in the box
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specification
Inlet Type Flange
Clamps Included No
Hangers Included No
Series HM Grade
Material Stainless Steel
Body Type Spun
Finish Stainless
Tube Material Stainless Steel
Outlet Type Flange
Heat Shield Attached No
Body Material Stainless Steel
California Air Resources Board (CARB) Certified No
Substrate Material Ceramic
Universal or Specific Fit Specific
Grade Type Regular
Inlet Gasket Included Yes
Inlet Mounting Hardware Included No
Outlet Gasket Included No
Outlet Mounting Hardware Included No
Overall Length 24 in
Air Tube Count 0
Sensor Port Count 2
New York Certified Yes
Oxygen Sensor Location Post Converter
Air Tube Adaptable No
CARB Executive Order Number Not Applicable
Hardware Kit
Flange Gasket 1
O2 Port Plug 1
