Product Description:
Hawks Motorsports is pleased to offer our clients this Holley's new 6.86" Pro Dash delivers over 200 monitoring channels of reliable real-time data in a more compact, full HD package suitable for nearly any motorsports application. Be assured that the Holley EFI 6.86" Pro Dash will deliver the vitals you need! The 6.86" Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 6.86" 1280x480 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in the sun, plug and play connection to all Holley EFI systems as well as a weatherproof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance! Holley EFI 6.86" Pro Dash includes everything needed for installation! The Holley EFI 6.86" Pro Dash also features a plethora of Input and Outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations! The Pro Dash also features two dedicated speed inputs, for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch, or an electric water pump. We have also integrated a 10-LED Programmable shift light into the bezel of the dash and added 4 optional LED's that can be programmed for virtually anything, such as fuel pressure or oil pressure warning indicators, or a target boost indicator, the options are almost endless.
Features:
- Plug-and-play Display support for Dominator, HP, Terminator X & Sniper EFI
- Integrated a 10-LED Programmable shiftlight w/ 4-LED warning indicators for other sensor inputs.
- Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
- 10 default background skins pre-loaded with unlimited options for importing custom layouts
- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel eliminates the need for external toggle switches
- Manual or auto-brightness features for easy viewing day or night
- Built-in GPS with odometer function (Antenna included)
- On-screen datalog playback features allows you to review vital run information
- Expandable storage via USB
- No stylus required, capacitive touch, just like your smart phone.
- User definable channel alarms and warnings
- 4x 10-32 mounting holes for surface or flush mounting, with high quality hardware included!
- Includes everything needed for installation!
- USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
- Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
- Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs.
- User defined alarms for any input
- Upgradable with future software enhancements
- Viewing area is 6.86" on the diagonal
- Dash weight - 1.2 Lbs
- Real-time ECU tuning - HP/Dominator ECUs only
-
Features:

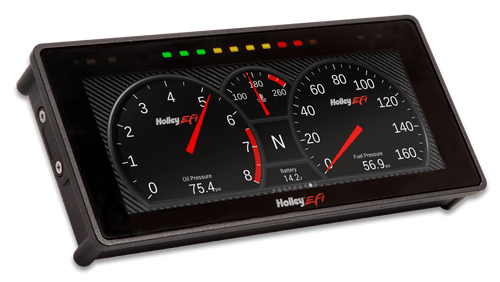

- Holley EFI 6.86 inch Pro Dash
- Part number 553-112
- Universal fit digital dash display
- 6.86 inch diagonal viewing area
- 1280x480 high-resolution display
- Full-color capacitive touch screen
- Low-glare, high-brightness, high-contrast screen
- Plug-and-play display support for Holley Dominator, HP, Terminator X, Terminator X Max, and Sniper EFI systems
- Not compatible with Sniper 2 EFI systems
- Capable of monitoring up to 238 real-time data values depending on system setup
- Programmable gauge and indicator screens
- 10 default background skins preloaded
- Custom layout and background import capability
- Quickly swipe between multiple active screens
- Virtual switch panel feature
- Manual or auto-brightness control
- Built-in GPS with odometer function
- GPS antenna included
- On-screen datalog playback
- Expandable storage through USB
- USB keyboard and mouse functionality for faster layout setup
- User-definable channel alarms and warnings
- Integrated 10-LED programmable shift light
- Four additional programmable warning LEDs
- 13 multi-configurable inputs through the 34-pin connector
- Four ground-switched outputs for auxiliary control functions
- Weather-resistant aluminum housing
- Surface or flush mounting capability
- Four 10-32 mounting holes
- Dash weight: approximately 1.2 lb
- UPC: 090127072790
Compatibility:
- Holley EFI HP systems with required firmware
- Holley EFI Dominator systems with required firmware
- Holley Terminator X systems
- Holley Terminator X Max systems
- Holley Sniper EFI systems
- Not compatible with Holley Sniper 2 EFI systems
Common Display Uses:
- RPM
- Throttle position
- Boost
- Manifold pressure
- Air/fuel ratio
- Oil pressure
- Fuel pressure
- Coolant temperature
- Battery voltage
- Vehicle speed
- Driveshaft speed
- Sensor warnings
- Shift light control
- EFI system monitoring
- Datalog playback
- Custom switch panel control
Includes:
- Holley EFI 6.86 inch Pro Dash
- 34-pin wiring harness with power, ground, and CAN bus connections
- GPS antenna
- Mounting hardware
- Installation-related hardware supplied with the kit
- Digital dash system only unless otherwise specified
Not Included:
- Vehicle-specific dash bezel
- Vehicle-specific mounting panel
- Additional sensors not supplied with the kit
- CAN bus splitter, extension harnesses, or optional modules unless specifically listed
- EFI system, ECU, tuning software, laptop, wiring repair, or installation labor
- Custom dash fabrication, bracket fabrication, or vehicle-specific trim work
Fitment:
- Universal fitment for custom vehicle installations
- Designed for compatible Holley EFI systems
- Can be used in Camaro, Firebird, Trans Am, Corvette, GM truck, G-body, street rod, race car, LS swap, LT swap, EFI conversion, and custom performance applications when properly mounted and wired
Fitment Note:
- This is a universal digital dash display, not a direct bolt-in vehicle-specific dash cluster by itself.
- Vehicle-specific dash panels, bezels, brackets, wiring, sensors, or fabrication may be required depending on application.
- Not compatible with Sniper 2 EFI systems.
- Real-time ECU tuning is available with HP and Dominator ECUs only.
- Verify EFI system compatibility, firmware version, CAN bus wiring, sensor setup, mounting space, screen clearance, and installation requirements before ordering.
- Professional installation is recommended for custom wiring, race cars, LS swaps, EFI conversions, and fabricated dash panels.
