Product Description:

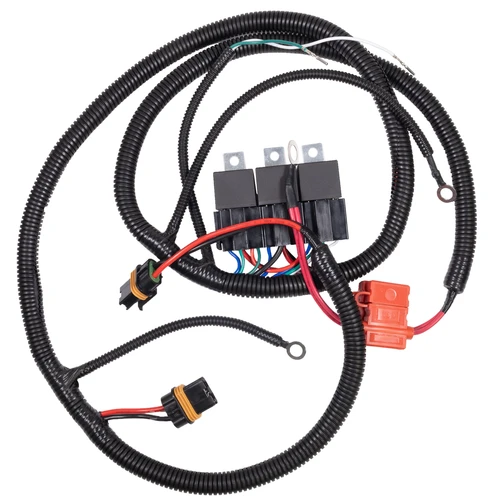

This stand-alone wiring harness allows a factory-style 1987-1992 dual electric fan assembly to be integrated into compatible 1982-1992 Chevrolet Camaro and Pontiac Firebird projects.
Dedicated low- and high-speed negative-trigger inputs, fan-motor connectors, power and ground leads create a clean control path for restomods, cooling upgrades and earlier third-generation cars converted to factory dual fans.
| Feature | Product specification |
| Producer | Hawks Motorsports |
| Product type | Stand-alone dual-fan harness |
| Vehicle range | 1982-1992 Camaro / Firebird retrofit |
| Fan requirement | 1987-1992 factory dual-fan assembly |
| Fan connections | Factory-style motor connectors |
| Control inputs | Low and high speed, negative trigger |
| Power lead | Red, 12-volt source |
| Ground lead | Black |
| Low-speed lead | Green, negative input |
| High-speed lead | White, negative input |
| Condition | New |
| Fans included | No |
| Application | Required configuration |
| 1982-1992 Chevrolet Camaro | Retrofit using compatible 1987-1992 OEM dual-fan assembly |
| 1982-1992 Pontiac Firebird | Retrofit using compatible 1987-1992 OEM dual-fan assembly |
- One stand-alone dual electric fan wiring harness
- Factory-style connectors for compatible third-generation fan motors
- Red 12-volt power lead and black ground lead
- Green low-speed and white high-speed negative-trigger inputs
Electric fans, mounting brackets, temperature switches, fan controller, ECM calibration and cooling-system components are not included.
Two-Speed Control Inputs
Separate low- and high-speed trigger leads let the installer connect an appropriate ECM, fan controller or switching strategy. Both control inputs require a negative trigger.
1987-1992 Fan-Side Compatibility
The harness is sold for 1982-1992 retrofit projects, but its motor connectors are designed for the factory 1987-1992 dual-fan assembly. This distinction should be confirmed before ordering.
Control Source Required
The harness does not generate temperature-based commands. The vehicle must provide properly engineered low- and high-speed signals through an ECM, controller or switch system.
- Disconnect the battery and identify a protected harness route away from exhaust and moving parts.
- Confirm that the fan assembly uses compatible 1987-1992 factory-style motor connectors.
- Mount the harness so relays, splices and terminals are protected from heat, moisture and abrasion.
- Connect the red lead to a properly protected 12-volt power source and the black lead to a clean ground.
- Connect the green wire to the low-speed negative trigger and the white wire to the high-speed negative trigger.
- Plug the fan connectors into the compatible motors and secure all wiring with adequate strain relief.
- Reconnect the battery and command each speed separately while monitoring fan rotation and current draw.
- Verify that both fans shut off correctly and that wiring remains cool before completing the installation.
Will this harness fit an earlier third-generation car?
Yes. It is intended to retrofit the compatible 1987-1992 factory dual-fan setup into 1982-1992 Camaro and Firebird projects.
Are the fans included?
No. This listing includes the stand-alone harness only.
Does it include a temperature switch?
No. The trigger signals must come from an existing ECM, fan controller or suitable switch system.
What type of trigger does it use?
The green low-speed and white high-speed inputs require negative trigger signals.
Are the fan connectors universal?
No. They are tailored to compatible factory-style third-generation dual-fan motors.
