Hawks Motorsports offers our clients this 1988-2006 Chevrolet/GMC C-Series Truck TREMEC TKX 5-Speed Manual Conversion Kit.
The TREMEC TKX RestoFit® 5-Speed Conversion Kit provides a modern manual transmission upgrade for 1988-2006 Chevrolet and GMC C-Series trucks. Designed for street-driven trucks and performance builds, this kit combines compact packaging, increased drivetrain strength, and overdrive cruising capability while maintaining excellent drivability.
The TREMEC TKX transmission is capable of handling up to 600 lb-ft of torque and supports high RPM shifting up to 7,500 RPM. Its compact rounded case design helps reduce or eliminate transmission tunnel modifications, making it an excellent solution for upgrading classic and OBS-era GM trucks with modern 5-speed performance.
Vehicle Configuration Required
Transmission conversion kits are vehicle specific. Complete the Hawks Motorsports Transmission Conversion Request Form before ordering so our team can verify compatibility and confirm the correct components for your application.
This TREMEC TKX conversion kit is designed for 1988-2006 Chevrolet and GMC C-Series trucks. Additional components may be required depending on engine configuration, clutch setup, drivetrain modifications, and vehicle specifications.
TECHNICAL OVERVIEW
The TREMEC TKX 5-Speed manual transmission provides improved performance, fuel economy, and highway cruising compared to traditional non-overdrive manual transmissions. The compact transmission case design allows improved installation flexibility while maintaining the strength required for modern performance applications.
The TKX is available with wide ratio or close ratio gearing options to match different driving styles and engine combinations.
TREMEC TKX gear ratios:
- Wide Ratio: 3.27, 1.98, 1.34, 1.00, 0.72
- Close Ratio: 2.87, 1.89, 1.28, 1.00, 0.68 OR 0.81
The TKX transmission provides reduced noise, vibration, and harshness (NVH), lower highway RPM, and improved drivability for daily street use. The transmission can be configured for mechanical or hydraulic clutch operation by changing external components without requiring transmission disassembly.

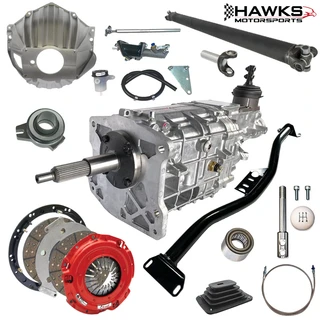

INCLUDED COMPONENTS:
- TREMEC TKX 5-Speed Overdrive Manual Transmission
- Pilot bearing with heavy-duty needle roller design and lubrication seal
- Bellhousing
- McLeod flywheel
- McLeod clutch assembly
- Hydraulic clutch kit
- Installation hardware with labeled components
- Rubber isolator mount for vibration control
- Optional heavy-duty polyurethane isolator mount available for track applications
- Waterproof reverse light connector
- Mechanical and electronic speedometer connection compatibility
- Custom lightweight steel driveshaft and slip yoke
- Dynamically balanced driveshaft with premium solid universal joints
- Detailed installation instructions
- Lifetime technical support
KEY FEATURES:
- TREMEC TKX 5-Speed manual transmission conversion
- 600 lb-ft torque capacity
- 7,500 RPM shift capability
- Compact rounded transmission case design
- Reduced or eliminated transmission tunnel modifications
- Wide ratio and close ratio gearing options available
- Overdrive fifth gear for reduced highway RPM
- Improved fuel economy potential compared to non-overdrive transmissions
- Reduced noise, vibration, and harshness
- Compatible with mechanical or hydraulic clutch configurations
- Designed for everyday street driving and performance applications
- Includes clutch, flywheel, bellhousing, and installation hardware
- Mechanical and electronic speedometer compatibility
- Reverse light wiring connection included
- Factory-style installation support with detailed instructions
FITMENT APPLICATIONS
| Make | Model | Years |
|---|---|---|
| Chevrolet | C-Series Pickup Truck C1500/C2500/C3500 | 1988-2006 |
| GMC | C-Series Pickup Truck C1500/C2500/C3500 | 1988-2006 |
INSTALLATION NOTES:
- Vehicle verification is required before ordering to confirm proper transmission configuration and component compatibility.
- Customers must complete the Hawks Motorsports Transmission Conversion Request Form before purchase.
- Driveshafts are no longer included with all kit configurations and may require separate purchase depending on application.
- Additional components may be required based on engine selection, clutch configuration, drivetrain setup, and vehicle modifications.
- Manual transmission conversions require proper clutch, hydraulic system, wiring, and drivetrain installation procedures.
- Professional installation is recommended to ensure proper alignment, fitment, and transmission operation.
- Installed or modified transmission components may not be eligible for return.
