Product Description:

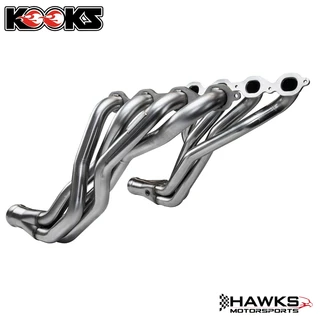

Hawks Motorsports is pleased to offer our clients the following 2016-2019 Cadillac CTS-V LT4 6.2L 1-7/8" x 3" Stainless Steel Long Tube Headers by Kooks, part number 23122400. These long tube headers are designed specifically for the supercharged 6.2L LT4-powered Cadillac CTS-V and feature 1-7/8-inch mandrel-bent primary tubes flowing into 3-inch collectors.
The LT4 already has plenty of blower noise and horsepower to back up its attitude, but opening up the exhaust side is where a serious CTS-V build starts sounding like it means business. These 1-7/8-inch Kooks long tubes give that supercharged 6.2L a larger path out of the cylinder heads while feeding into 3-inch collectors, making them a solid foundation for a hard-charging street or performance-oriented exhaust combination.
Kooks builds these headers from 304 stainless steel with 3/8-inch thick laser-cut flanges, oval ports, and a stock bolt pattern. The headers use 1-7/8-inch mandrel-bent primary tubes and 3-inch collector outlets with Torca Swivel-Seal-style connections.
These headers do not connect directly to the OEM exhaust. A compatible Kooks connection pipe system or Kooks header-back exhaust system is required to complete the exhaust configuration.
KEY FEATURES
- Kooks part number 23122400
- Fits 2016-2019 Cadillac CTS-V
- Designed for the supercharged 6.2L LT4 V8
- 1-7/8-inch x 3-inch long tube header configuration
- 304 stainless steel construction
- 1-7/8-inch mandrel-bent primary tubes
- 3-inch collector outlets
- 3/8-inch thick laser-cut flanges
- Oval port design
- Stock bolt pattern
- Torca Swivel-Seal-style collector connections
- Requires a compatible Kooks connection pipe system or header-back exhaust system to complete the exhaust configuration
PRODUCT SPECIFICATIONS
| Specification | Details |
|---|---|
| Manufacturer | Kooks Headers & Exhaust |
| Part Number | 23122400 |
| Vehicle Application | Cadillac CTS-V |
| Year Range | 2016-2019 |
| Engine | 6.2L Supercharged LT4 V8 |
| Product Type | Long Tube Headers |
| Material | 304 Stainless Steel |
| Primary Tube Diameter | 1.875 in. / 1-7/8 in. |
| Collector Diameter | 3.000 in. |
| Port Style | Oval |
| Flange Thickness | 3/8 in. |
| Flange Type | Laser Cut |
| Bolt Pattern | Stock |
| Collector Connection | Torca Swivel-Seal Style |
| OEM Exhaust Connection | Does not connect directly |
| Required Downstream System | Compatible Kooks connection pipes or header-back exhaust |
VEHICLE FITMENT / FITS THE FOLLOWING MODELS
Cadillac CTS-V Sedan
- 2016 Cadillac CTS-V — 6.2L Supercharged LT4 V8
- 2017 Cadillac CTS-V — 6.2L Supercharged LT4 V8
- 2018 Cadillac CTS-V — 6.2L Supercharged LT4 V8
- 2019 Cadillac CTS-V — 6.2L Supercharged LT4 V8
The manufacturer identifies part number 23122400 for the 2016-2019 Cadillac CTS-V LT4 6.2L application.
IMPORTANT APPLICATION NOTES AND EXCLUSIONS
Does Not Connect Directly to the OEM Exhaust
These headers do not directly connect to the factory exhaust. A compatible Kooks connection pipe system or Kooks header-back exhaust system is required to complete the exhaust system.
Exact LT4 CTS-V Application
Part number 23122400 is designed for the 2016-2019 Cadillac CTS-V equipped with the supercharged 6.2L LT4 V8. It should not be confused with header applications for earlier CTS-V generations.
California Emissions Restriction
Current product information indicates this part is not CARB compliant for California. Verify all applicable emissions and vehicle-use regulations before purchase or installation.
INSTALLATION NOTES
- Verify the vehicle is a 2016-2019 Cadillac CTS-V with the supercharged 6.2L LT4 V8.
- Confirm the complete downstream exhaust configuration before installation.
- A compatible Kooks connection pipe system or Kooks header-back exhaust system is required.
- Follow the current Kooks installation instructions.
- Verify exhaust routing and clearance before operating the vehicle.
- Inspect the completed exhaust system for leaks.
- Recheck clearances after the initial heat cycles.
FREQUENTLY ASKED QUESTIONS
What vehicles do Kooks 23122400 headers fit?
Kooks 23122400 is designed for the 2016-2019 Cadillac CTS-V with the supercharged 6.2L LT4 V8.
What size are the primary tubes?
These headers use 1-7/8-inch mandrel-bent primary tubes.
What size are the collectors?
The headers feature 3-inch collector outlets.
What material are the headers made from?
Kooks identifies these headers as constructed from 304 stainless steel.
Do these headers connect directly to the factory exhaust?
No. Part number 23122400 does not connect directly to the OEM exhaust. A compatible Kooks connection pipe system or header-back exhaust system is required.
What is the difference between these and Kooks 23122600 headers?
Part number 23122400 uses 1-7/8-inch primary tubes, while Kooks 23122600 uses 2-inch primary tubes for the same 2016-2019 Cadillac CTS-V LT4 platform.
Are these headers CARB compliant for California?
Current product information indicates these headers are not CARB compliant for California. Customers should verify applicable laws and regulations for their intended use.
***Kooks is a built to order manufacturer and their focus is providing the best quality parts available. While their typical lead time is 4-6 weeks, some products may take up to 12 weeks to produce.***
