Product Description:
Hawks Motorsports offers the Morimoto Backup Light Boost Bar LED700, a high-output reverse light designed to provide substantially improved rearward visibility compared to standard factory backup lights. The LED700 combines 45 CREE LEDs with a purpose-built optical lens and durable aluminum construction for a powerful, focused reverse-lighting solution.
Overview
The Morimoto Backup Light Boost Bar is designed to mount directly to US-spec license plate mounting points. Its optical-grade polycarbonate lens produces a focused beam pattern designed specifically for reverse-light applications, providing a more useful spread of light than a standard clear lens. The light bar features a powder-coated die-cast aluminum housing with an IP69K-rated design for protection against water and dust intrusion. The satin-black housing is contoured to follow the shape of a standard US license plate for a clean, flush appearance.Compatibility
- Designed for US-spec license plate mounting points
- Compatible with all 9-16V reverse light circuits when installed using the included wire taps
- Plug-and-play connection available with Morimoto XB LED Tail Lights equipped with the Backup Light Boost connection
- Universal reverse-light application
- Excludes 2019+ Ram 1500 models due to bumper shape
Technical Specifications
- Part Number: B-ASY-LED700-MM
- Light Output: 2,700 raw lumens / 1,950 effective lumens
- Power: 29.9W maximum
- Light Source: 45 CREE J Series 2835 LEDs
- Color Temperature: 4500K
- Color Rendering: 80 CRI
- Driver: 180mA
- Optic: Focused optical-grade polycarbonate lens
- Vertical Beam Range: -30° to +15° at a 0° mounting angle
- Housing: Powder-coated cast aluminum
- Lens: Optical-grade UV-coated polycarbonate
- PCB: Copper
- Construction: Epoxy-sealed
Installation

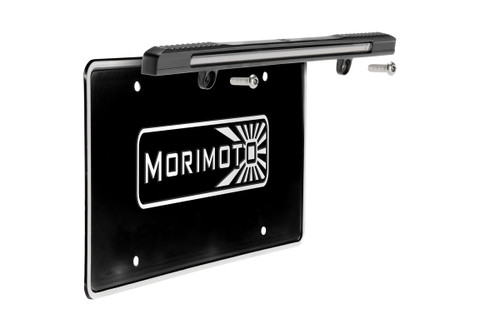

The Morimoto Backup Light Boost Bar bolts directly to the vehicle's top two license plate mounting points. The housing is designed around the geometry of a standard US-spec license plate for a clean, flush fit. When used with Morimoto XB LED Tail Lights equipped with the Backup Light Boost connection, the LED700 can connect directly to the reverse-light circuit for a plug-and-play installation. For vehicles without the Backup Light Boost connection, the included 1.5-meter integrated wiring and power tap kit can be used to connect the light bar to the factory reverse-light circuit. An integrated rubber grommet is also included to help seal the wiring pass-through when necessary.Detailed Description
The Morimoto LED700 Backup Light Boost Bar was engineered to provide substantially more useful reverse lighting than a typical replacement LED bulb. Instead of simply increasing the brightness of the factory reverse-light location, Morimoto designed the LED700 around a dedicated optical system to control how the light is distributed behind the vehicle. The 45 CREE J Series 2835 LEDs produce 2,700 raw lumens, with approximately 1,950 effective lumens after the light passes through the optical lens. The 4500K output and 80 CRI rating provide a bright, natural-looking light for improved visibility while reversing. Morimoto's optical engineering team developed the lens to produce a focused beam pattern based on typical mounting angles. At a 0-degree mounting angle, the light provides a vertical spread of -30° to +15°. At a 10-degree mounting angle, the vertical range is approximately -20° to +25°. The die-cast aluminum housing is finished in a satin-black powder coat and designed for durability in exterior automotive applications. The optical-grade polycarbonate lens is UV-coated, while the internal electronics use a copper PCB and epoxy-sealed construction.What's Included
- 1x Morimoto Backup Light Boost Bar LED700
- 1x Power Tap Kit
- Integrated wiring
- 5-Year Limited Warranty
