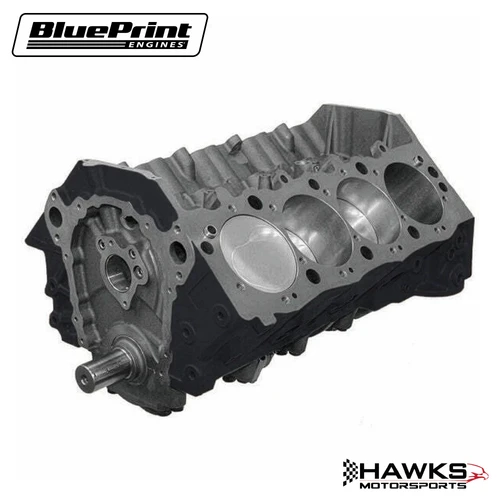

Hawks Motorsports offers the BluePrint Engines PS5401 GM Big Block Compatible 540 C.I. Pro Series Short Block, a premium foundation engineered for serious high-performance street, drag racing, marine, and custom engine builds. Designed around BluePrint's Pro Series architecture, this short block has demonstrated the capability to produce 670 horsepower and 660 lb-ft of torque when paired with BluePrint HP8013 aluminum cylinder heads, a Holley 850 CFM carburetor, and the recommended valvetrain and induction components. Actual power output will vary depending on the cylinder heads, camshaft, induction, and fuel system selected.

Built on a high-strength cast iron Big Block Chevrolet compatible block, the PS5401 features a 4.500-inch bore, 4.250-inch forged steel crankshaft, forged 6.385-inch H-beam connecting rods, and 13cc dome forged pistons. The internally balanced rotating assembly and splayed 4-bolt main caps provide exceptional durability for naturally aspirated and power-adder applications. With a 10.5:1 compression ratio (using 118cc cylinder heads and a .039" compressed head gasket), this short block is an outstanding choice for builders seeking a reliable, high-horsepower platform.

Key Features:

• SKU: PS5401
• BluePrint Engines GM Big Block Compatible Pro Series Short Block
• 540 cubic inch displacement
• 670 horsepower / 660 lb-ft torque capable (with recommended top-end components)
• High-strength cast iron engine block
• 4.500" bore
• 4.250" forged steel crankshaft
• Forged 6.385" H-beam connecting rods
• Forged 13cc dome pistons
• 10.5:1 compression ratio (with 118cc heads)
• Internally balanced rotating assembly
• Splayed 4-bolt main caps
• 1-piece rear main seal
• Mechanical fuel pump provision
• Standard deck height
• Manufactured and machined in the USA
• Sold as a short block only

Fitment Applications:

Designed for custom GM Big Block Chevrolet compatible engine builds, including:

• Chevrolet Camaro
• Chevrolet Chevelle
• Chevrolet Nova
• Chevrolet El Camino
• Chevrolet Corvette
• Chevrolet Impala
• Chevrolet C10, C20 & C30 Pickup
• Street rods
• Pro Touring builds
• Drag racing vehicles
• Marine applications
• Custom BBC performance builds

Verify compatibility with your cylinder heads, oil pan, timing cover, rotating assembly accessories, and vehicle application before ordering.

Installation Notes:

• Short block assembly only.
• Cylinder heads not included.
• Camshaft and valvetrain not included.
• Intake manifold not included.
• Carburetor or EFI system not included.
• Ignition system not included.
• Harmonic balancer and flywheel/flexplate sold separately unless otherwise specified.
• Professional installation and engine blueprinting are recommended.
• Power output depends on the cylinder heads, camshaft, induction system, and tuning used.
