Product Description:

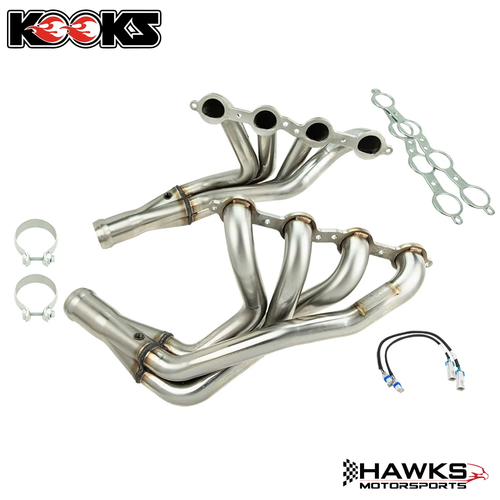

Hawks Motorsports is pleased to offer our clients the 2006-2013 Chevrolet Corvette C6 Z06/ZR1 1-7/8" Stainless Steel Long Tube Headers 7.0L/6.2L, Kooks 21612401. These Kooks 1-7/8" x 3" long tube headers are constructed from 304 stainless steel and designed for the C6 Corvette Z06 and ZR1. The current revision uses Torca swivel-seal connections for improved fitment and includes stainless multi-layer gaskets, a header bolt kit, swivel-seal clamps, an O2 extension harness and a transmission cooler line relocation bracket.
The 1-7/8" primary size is a solid choice when you're putting together a serious C6 exhaust setup without stepping up to the larger 2" primary. The LS7-powered Z06 and supercharged LS9 ZR1 have plenty of airflow to take advantage of a properly matched header and exhaust combination, and these stainless long tubes give the engine a much freer path out of the cylinder heads. Add the right Kooks X-pipe behind them and you've got a combination that looks, sounds and performs like it belongs underneath a C6 built with more than stock power in mind.
Kooks uses 304 stainless steel construction with 1.875" primary tubes and 3" collectors. The current revision incorporates Torca swivel-seal connections designed to improve fitment. The headers also include oxygen-sensor provisions and the installation components specified by Kooks.
These headers do not connect directly to the OEM exhaust manifolds or factory catalytic converters. Kooks specifically states that the headers require a compatible Kooks X-pipe.
Kooks currently lists 21612401 as built to order in North Carolina, with an estimated 4-6 week ship window. Production times can vary, so this should be treated as an estimate rather than a guaranteed delivery date.
KEY FEATURES
- Manufacturer: Kooks Headers & Exhaust
- Part Number: 21612401
- Product Type: Long Tube Headers
- Application: 2006-2013 Chevrolet Corvette C6 Z06/ZR1
- Primary Tube Diameter: 1.875"
- Collector Diameter: 3"
- Header Configuration: 1-7/8" x 3"
- Material: 304 Stainless Steel
- Finish: Stainless Steel
- Connection: Torca swivel-seal
- Oxygen Sensor Ports: Yes
- O2 Extension Harness: Included
- Gaskets: Included
- Header Bolt Kit: Included
- Swivel-Seal Clamps: Included
- Transmission Cooler Line Relocation Bracket: Included
- X-Pipe Required: Yes
- Direct OEM Exhaust Connection: No
- Condition: New
- Manufacturer Status: Built to order
PRODUCT SPECIFICATIONS
| Specification | Details |
|---|---|
| Manufacturer | Kooks Headers & Exhaust |
| Part Number | 21612401 |
| Vehicle | Chevrolet Corvette C6 |
| Models | Z06 / ZR1 |
| Z06 Engine | 7.0L LS7 |
| ZR1 Engine | 6.2L LS9 |
| Header Type | Long Tube |
| Primary Diameter | 1.875" |
| Collector Diameter | 3.000" |
| Header Size | 1-7/8" x 3" |
| Material | 304 Stainless Steel |
| Finish | Stainless Steel |
| Connection Type | Torca Swivel-Seal |
| O2 Ports | Yes |
| O2 Extension Harness | Included |
| Gaskets | Included |
| Header Bolt Kit | Included |
| Swivel-Seal Clamps | Included |
| Transmission Cooler Line Bracket | Included |
| X-Pipe Required | Yes |
| Direct OEM Exhaust Connection | No |
| Condition | New |
VEHICLE FITMENT / FITS THE FOLLOWING MODELS
2006-2013 Chevrolet Corvette C6 Z06
7.0L LS7
- 2006 Corvette Z06
- 2007 Corvette Z06
- 2008 Corvette Z06
- 2009 Corvette Z06
- 2010 Corvette Z06
- 2011 Corvette Z06
- 2012 Corvette Z06
- 2013 Corvette Z06
2009-2013 Chevrolet Corvette C6 ZR1
6.2L LS9 Supercharged
- 2009 Corvette ZR1
- 2010 Corvette ZR1
- 2011 Corvette ZR1
- 2012 Corvette ZR1
- 2013 Corvette ZR1
Important Engine Identification
The correct factory engine applications are:
- C6 Z06 = 7.0L LS7
- C6 ZR1 = 6.2L LS9 Supercharged
There is a current error on Kooks' 21612401 page where the LS7/LS9 assignments are reversed in the description. The Kooks header-family documentation and independent current retailer information support the correct factory engine assignments above.
IMPORTANT APPLICATION NOTES AND EXCLUSIONS
Kooks X-Pipe Required
These headers do not connect directly to the OEM exhaust. Kooks specifically states that use of the headers requires a Kooks X-pipe.
Torca Swivel-Seal Connection
The current 21612401 revision features Torca swivel-seal connections for improved fitment. The selected X-pipe must be compatible with the header connection.
1-7/8" vs. 2" Headers
21612401 is the 1-7/8" version.
Kooks' comparable 2" header is 21612601. These are separate SKUs and should not be treated as interchangeable without confirming the complete exhaust configuration.
Not a Complete Exhaust System
This listing is for the long tube header set. A compatible X-pipe is required to connect the headers to the remainder of the exhaust system.
Emissions / Competition Use
Do not market these headers as CARB-compliant or generally street-legal. Kooks includes a California Proposition 65 warning, and marketplace documentation identifies this header as a competition/race-use product.
INSTALLATION NOTES
- Verify the vehicle is a C6 Z06 or ZR1 before ordering.
- Confirm the correct engine configuration.
- Verify compatibility with the selected Kooks X-pipe.
- Confirm the X-pipe uses the appropriate Torca connection for the current header revision.
- Follow the current Kooks installation instructions.
- Install the supplied gaskets, bolts, clamps and O2 extension harness according to manufacturer instructions.
- Verify oxygen-sensor routing and clearance.
- Check header and exhaust clearance around surrounding components.
- Inspect all connections for exhaust leaks after installation.
- Recheck fasteners and connections after the initial heat cycle.
FREQUENTLY ASKED QUESTIONS
What Corvettes do Kooks 21612401 headers fit?
They are designed for the 2006-2013 C6 Corvette Z06 and ZR1 applications.
What size are these headers?
The headers use 1-7/8" primary tubes with 3" collectors.
What are the headers made from?
They are constructed from 304 stainless steel.
What engine does the C6 Z06 use?
The C6 Z06 uses the 7.0L LS7.
What engine does the C6 ZR1 use?
The C6 ZR1 uses the 6.2L LS9 supercharged engine.
Do these headers connect directly to the factory exhaust?
No. Kooks states that these headers require a compatible Kooks X-pipe.
Does the kit include the O2 extension harness?
Yes. Kooks lists a CAS-105630 O2 Extension Harness Kit, including two rear O2 sensor extensions.
Are the gaskets and header bolts included?
Yes. The package includes a pair of multi-layer stainless steel gaskets and a header bolt kit.
Are clamps included?
Yes. Kooks lists two swivel-seal clamps with the header set.
Is the transmission cooler line relocation bracket included?
Yes. Kooks lists the K60015 transmission cooler line relocation bracket as included.
Is this the 2" Kooks header?
No. 21612401 is the 1-7/8" header. Kooks part 21612601 is the comparable 2" header.
Are these headers built to order?
Yes. Kooks currently identifies 21612401 as built to order in North Carolina with an estimated 4-6 week shipping window.
***Kooks is a built to order manufacturer and their focus is providing the best quality parts available. While their typical lead time is 4-6 weeks, some products may take up to 12 weeks to produce.***
