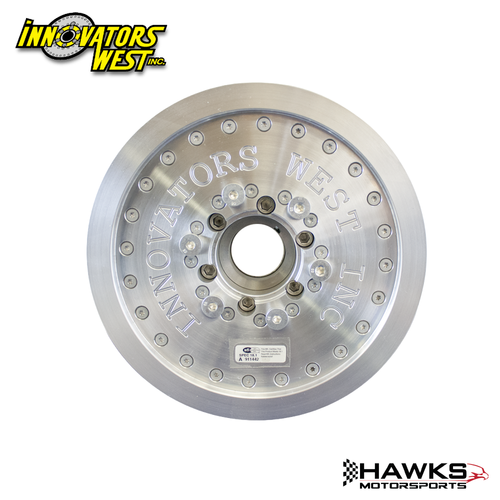

Hawks Motorsports offers our clients this 844 LSX 10-Rib Harmonic Damper for Corvette, Pontiac G8 and CTS-V, 10% Overdrive, Innovators West. This SFI 18.1 harmonic damper is designed for LS1, LS2, LS3 and LS6 wet-sump engines in Corvette, Pontiac G8 and Cadillac CTS-V applications. It features a 10-rib drive, 10% overdrive pulley, 8.125-inch diameter and includes a crank bolt.

If you're leaning on an LS with a blower, the crank pulley is where the whole belt-drive party starts. This 844 puts a serious 10-rib drive at the crank and spins the supercharger 10% harder without resorting to an even smaller blower pulley. More belt contact means more grip when you're making real power, and the larger 8.125-inch pulley gives the setup the overdrive needed to wake up the blower.

The damper uses a 3/16-inch keyway, exceeds SFI 18.1 standards, and is available with an optional dual-keyway setup or Super Duty Blower Hub for higher-output applications. Innovators West recommends the Super Duty Blower Hub for supercharged combinations producing 750+ rear-wheel horsepower.

KEY FEATURES:

• Part number: 844
• Innovators West harmonic damper
• Designed for LS1, LS2, LS3 and LS6 engines
• 10-rib main drive
• 10% overdrive
• 8.125-inch diameter
• SFI 18.1 rated
• Approximately 11.4 lbs
• Internal-balance LSX application
• Single 3/16-inch keyway
• Crank bolt included
• Standard hub
• Optional dual-keyway configuration available
• Optional Super Duty Blower Hub available
• Designed for wet-sump Corvette, G8 and CTS-V applications
• Sold individually

FITMENT APPLICATIONS:

Chevrolet Corvette

• 1997-2004 Chevrolet Corvette C5 — LS1/LS6 applications
• 2005-2013 Chevrolet Corvette C6 — applicable LS1/LS2/LS3/LS6 applications

Pontiac G8

• 2008-2009 Pontiac G8 — applicable LS engine applications

Cadillac CTS-V

• 2004-2007 Cadillac CTS-V — LS6 applications
• Verify exact engine and accessory-drive configuration on later CTS-V applications before ordering.

Innovators West identifies the 844 for LS1/LS2/LS3/LS6 Corvette, Pontiac G8 and Cadillac CTS-V applications.

Important: This damper is intended for the wet-sump Corvette/G8/CTS-V accessory-drive configuration. Verify the engine, crankshaft, accessory drive and belt arrangement before ordering, particularly on engine swaps or modified applications.

INSTALLATION NOTES:

• This listing is for one Innovators West 844 harmonic damper.
• Crank bolt is included.
• Standard configuration uses a single 3/16-inch keyway.
• Verify crankshaft keyway and snout configuration before installation.
• A dual-keyway option requires the crankshaft to be properly machined for the second keyway.
• Do not install a dual-keyed damper on a crankshaft without the corresponding second keyway.
• A crankshaft pin kit is available for compatible stock, non-keyed crankshafts.
• The optional Super Duty Blower Hub is intended for high-power supercharged applications and is recommended by the manufacturer for combinations exceeding approximately 750 rwhp.
• Verify pulley alignment and belt tracking before operating the engine.
• Verify the correct belt length and routing for the completed accessory-drive configuration.
• Use the proper harmonic damper installation tool.
• Follow Innovators West installation and torque specifications.
• Verify fitment before ordering, especially on engine swaps, aftermarket accessory drives or modified crankshafts.f
