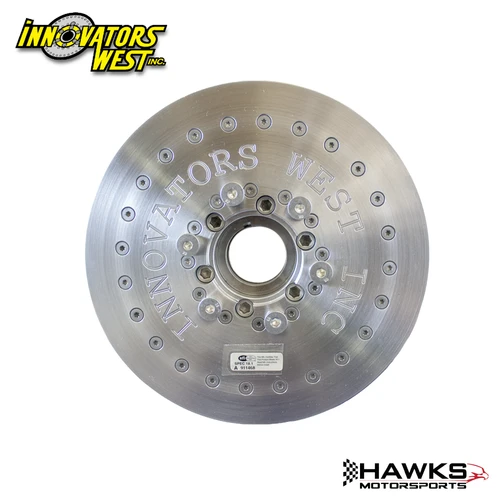

Hawks Motorsports offers our clients this 853 LSX 8-Rib Harmonic Balancer for 2006-2013 Corvette LS7, 10% Overdrive, Innovators West. This SFI 18.1 harmonic damper is designed for the LS7 Corvette accessory drive and features an 8-rib pulley with a 10% overdrive ratio.

If you're putting some serious power through an LS7, the belt drive needs to be able to hang with it. The 8-rib setup gives the belt more bite on the crank, while the 10% overdrive gets the blower spinning harder without having to go straight to an extremely small blower pulley. It's a solid piece for an LS7 that's being pushed hard, whether you're building a high-RPM combination or putting boost on one.

The 853 measures 8.125 inches in diameter, weighs approximately 8.6 lbs, and comes with a single 3/16-inch keyway. It exceeds SFI 18.1 standards and includes the crank bolt. Innovators West also notes that, despite having eight belt grooves, this damper can be used with the stock 6-rib accessory drive.

KEY FEATURES:

• Part number: 853
• Innovators West LSX harmonic balancer
• Designed for 2006-2013 LS7 Corvette applications
• 8-rib belt drive
• 10% overdrive
• 8.125-inch diameter
• Approximately 8.6 lbs
• Exceeds SFI 18.1 standards
• Single 3/16-inch keyway
• Includes crank bolt
• Designed for the Corvette LS7 dry-sump accessory-drive configuration
• Can be used with the stock 6-rib accessory drive
• Suitable for high-performance and forced-induction LS7 applications

FITMENT APPLICATIONS:

Chevrolet Corvette Z06 — 7.0L LS7

• 2006 Chevrolet Corvette Z06
• 2007 Chevrolet Corvette Z06
• 2008 Chevrolet Corvette Z06
• 2009 Chevrolet Corvette Z06
• 2010 Chevrolet Corvette Z06
• 2011 Chevrolet Corvette Z06
• 2012 Chevrolet Corvette Z06
• 2013 Chevrolet Corvette Z06

Other LSX Applications:

• LSX engines using the Corvette drive offset and dry-sump oiling system may be compatible. Verify the complete accessory-drive configuration before ordering.

INSTALLATION NOTES:

• This listing is for one 853 harmonic balancer.
• Crank bolt is included.
• Verify the engine, accessory-drive configuration, crankshaft and dry-sump setup before ordering.
• Designed for an 8-rib belt system but may be used with the stock 6-rib accessory drive.
• The 10% overdrive increases crank-driven accessory and supercharger speed.
• Verify belt length and routing before operation.
• Verify pulley alignment across the complete accessory drive.
• Inspect the crankshaft snout and keyway before installation.
• The damper comes with a single 3/16-inch keyway.
• A second 3/16-inch keyway can be added, but the crankshaft must be machined for the second keyway 180 degrees from the original.
• Innovators West recommends a second keyway for high-horsepower LS7 applications.
• Follow the manufacturer's installation and torque specifications.
• Verify the complete belt-drive combination before starting the engine.
• Do not modify or permanently install the damper until fitment has been confirmed.
