Hawks Motorsports offers our clients this 995-KIT 2006-2013 Chevrolet Corvette Z06 LS7 8-Rib Drive Conversion Kit with 10% Overdrive Damper, Innovators West. This conversion kit is designed for the LS7 Corvette accessory drive and upgrades the system to an 8-rib belt configuration with a 10% overdrive harmonic damper.

If you're leaning on an LS7 with a blower, the belt drive isn't the place to cut corners. The 8-rib setup gives the belt more real estate to grab onto, while the 10% overdrive damper spins the blower faster without forcing you into an ultra-small blower pulley. It's a smart setup for an LS7 that's being pushed hard and needs the front drive to keep up with the rest of the combination.

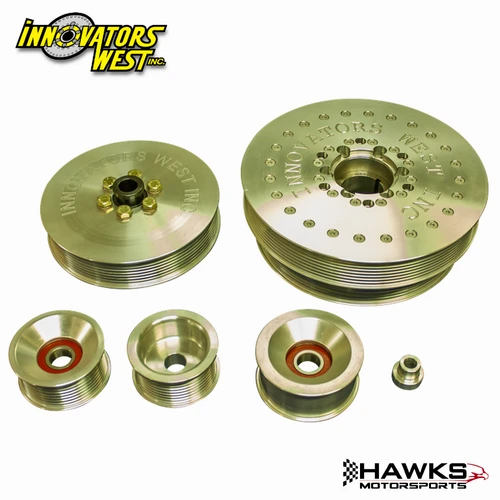

The 995 kit includes the harmonic damper, power steering pulley, alternator pulley, smooth idler pulley, and ribbed tensioner pulley. The included damper is an 8.125-inch, 8-rib, 10% overdrive unit and exceeds SFI 18.1 standards.

The kit is designed around the LS7 Corvette dry-sump accessory-drive arrangement used in the C6 Z06 and other compatible LS7 Corvette applications. Innovators West notes that LS7 dampers fit LSX engines using the Corvette drive offset and dry-sump oiling system.

KEY FEATURES:

• Part number: 995-KIT
• Innovators West LS7 Corvette 8-rib conversion kit
• Designed for LS7 Corvette applications
• 8-rib accessory drive
• 10% overdrive harmonic damper
• 8.125-inch damper diameter
• Approximately 8.9 lbs damper weight
• SFI 18.1 harmonic damper
• Crankshaft damper included
• Power steering pulley included
• Alternator pulley included
• Smooth idler pulley included
• Ribbed tensioner pulley included
• Optional underdrive alternator pulley available
• Optional double 3/16-inch keyway available
• Designed for high-performance and forced-induction LS7 combinations

FITMENT APPLICATIONS:

Chevrolet Corvette Z06 LS7

• 2006 Chevrolet Corvette Z06 — 7.0L LS7
• 2007 Chevrolet Corvette Z06 — 7.0L LS7
• 2008 Chevrolet Corvette Z06 — 7.0L LS7
• 2009 Chevrolet Corvette Z06 — 7.0L LS7
• 2010 Chevrolet Corvette Z06 — 7.0L LS7
• 2011 Chevrolet Corvette Z06 — 7.0L LS7
• 2012 Chevrolet Corvette Z06 — 7.0L LS7
• 2013 Chevrolet Corvette Z06 — 7.0L LS7

Other LS7 Corvette Applications

• 2010-2013 Chevrolet Corvette Grand Sport — LS7-compatible accessory-drive configurations

Important: Verify the engine, accessory-drive configuration, crankshaft and dry-sump setup before ordering. The LS7 Corvette dampers are intended for LSX engines using the Corvette drive offset and dry-sump oiling system.

INSTALLATION NOTES:

• This listing is for one 995-KIT 8-rib conversion kit.
• Kit includes the crankshaft damper, power steering pulley, alternator pulley, smooth idler pulley and ribbed tensioner pulley.
• Additional aftermarket pulleys are not included and must be sourced separately when required.
• The included damper provides 10% crankshaft overdrive.
• Verify belt length and routing after installation.
• Verify pulley alignment across the entire accessory drive.
• The damper uses a single keyway unless the optional double-keyway configuration is selected.
• The double-keyway option requires the crankshaft to be machined for a second 3/16-inch keyway 180 degrees from the original. Do not install a double-keyed damper on a crankshaft without the matching second keyway.
• Innovators West recommends the dual-keyway configuration for supercharged or extreme-duty applications, typically above 750 RWHP.
• The optional underdrive alternator pulley is intended for high-RPM race engines and may cause charging issues at idle in street-driven vehicles.
• Inspect the crankshaft snout and keyway before installation.
• Follow Innovators West installation instructions and torque specifications.
• Verify the complete accessory-drive combination before starting the engine.
• Do not modify or permanently install components until fitment has been confirmed.
