Hawks Motorsports offers our clients this 989-KIT LS1 GTO 8-Rib Drive Conversion Kit with 10% Overdrive Damper, Innovators West. This complete 8-rib accessory-drive conversion is designed for LS1-powered Pontiac GTO applications and includes an SFI 18.1 harmonic damper with a 10% overdrive crank pulley, along with the pulleys needed to convert the accessory drive to 8 ribs.

If you're putting boost through an LS1 GTO, the factory belt drive is one of the first places worth stepping up. More ribs give the belt more real estate to grab, while the 10% overdrive crank damper gets the blower spinning harder without having to rely solely on an ultra-small blower pulley. This is the kind of front-drive upgrade that makes sense when you're building the car to put down some real power and want the belt system to keep up.

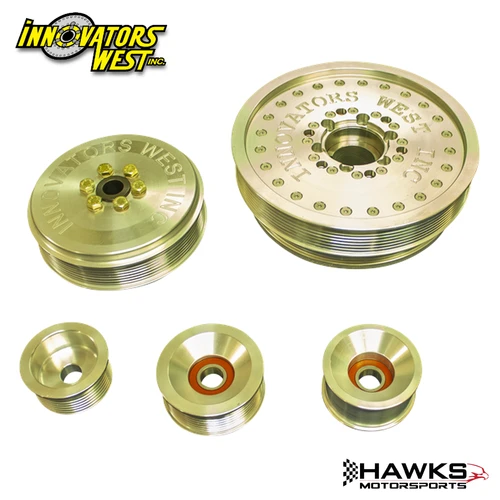

The kit includes the 833 10% overdrive 8-rib damper, 979 power steering pulley, 1010 offset smooth idler, 973 ribbed tensioner pulley, and 1031 8-rib alternator pulley. An optional 1089 underdrive alternator pulley is available. Cars equipped with a sprag-style alternator pulley require the additional 1053 LS GTO 17mm x 1.5 nut.

Super Duty Blower Hub Option:
The Super Duty Blower Hub is a thicker hub designed to provide greater resistance to hub cracking in high-power supercharged applications producing 750 rwhp and greater. This option includes a new custom-made timing cover seal that adapts the oversized hub to a stock timing cover.

Underdrive Alternator Option:
The Underdrive Alternator option uses a larger-diameter 2.800-inch alternator pulley designed to slow alternator speed on high-RPM race engines operating at 7,500 RPM or higher. Because the alternator turns slower, this option may cause charging issues at idle on street-driven vehicles.

KEY FEATURES:

• Part number: 989-KIT
• Innovators West 8-rib accessory-drive conversion kit
• Designed for LS1 Pontiac GTO applications
• 10% overdrive harmonic damper
• SFI 18.1 harmonic damper
• 8-rib serpentine belt drive
• Kit includes:
  • 833 8-rib 10% overdrive damper
  • 979 LS truck 8-rib power steering pulley
  • 1010 GM 8-rib offset smooth idler pulley
  • 973 GM 8-rib ribbed tensioner pulley
  • 1031 GM 8-rib alternator pulley
• Optional 1089 underdrive 8-rib alternator pulley
• Optional Super Duty Blower Hub
• Optional crankshaft pin kit 967
• Designed for performance and forced-induction LS applications

FITMENT APPLICATIONS:

Pontiac GTO

• 2004 Pontiac GTO — LS1
• 2005 Pontiac GTO — LS1 applications
• 2006 Pontiac GTO — LS1 applications

The manufacturer identifies the 989 specifically as the LS1 GTO 8-Rib Drive Conversion Kit with 10% Overdrive Damper. Verify the actual engine and accessory-drive configuration before ordering, particularly on modified or engine-swapped GTOs.

INSTALLATION NOTES:

• This listing is for one 989-KIT conversion kit.
• The kit includes the damper, power steering pulley, alternator pulley, smooth idler pulley, and ribbed tensioner pulley listed above.
• Serpentine belt is not listed as part of the kit.
• Cars equipped with a sprag-style alternator pulley require PN 1053, an LS GTO 17mm x 1.5 alternator pulley nut.
• The optional 967 crankshaft pin kit is designed for stock LS1/LS2 GTO crankshafts when used with Innovators West dampers.
• Verify crankshaft keyway and damper installation requirements before installation.
• The standard damper uses a single 3/16-inch keyway.
• A dual-keyway option requires the crankshaft to be properly machined for the second keyway.
• The Super Duty Blower Hub is recommended by the manufacturer for high-power supercharged applications around 750 rwhp and above.
• Verify pulley alignment, belt routing, and belt length before starting the engine.
• Any additional aftermarket pulleys must be sourced separately.
• Verify fitment before ordering on modified, swapped, or aftermarket accessory-drive configurations.
