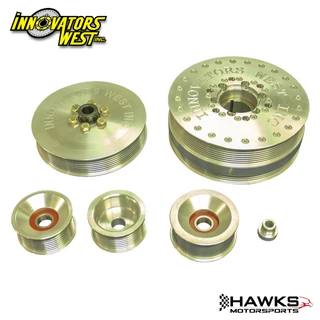

Hawks Motorsports offers our clients this 994-KIT LS7 Corvette 8-Rib Drive Conversion Kit with Standard-Diameter Damper, Innovators West. This kit converts the compatible LS7 Corvette accessory drive to an 8-rib belt system and includes a standard-diameter harmonic damper.

If you're building an LS7 that sees plenty of RPM and plenty of throttle, getting more belt around the pulleys is a smart move. The 8-rib conversion gives the accessory drive more belt contact and helps keep things under control when the engine is being worked hard. This is a good setup for a serious naturally aspirated LS7 or a combination where you want the stronger 8-rib drive without adding crank overdrive.

The 994-KIT is built around the LS7 Corvette accessory-drive layout and uses a standard-diameter damper, keeping the crank pulley ratio at the standard diameter rather than speeding up the accessory drive. The kit includes the major pulleys and components needed to make the 8-rib conversion.

KEY FEATURES:

• Part number: 994-KIT
• Innovators West LS7 Corvette 8-rib conversion kit
• Designed for LS7 Corvette applications
• 8-rib accessory drive
• Standard-diameter harmonic damper
• Designed for high-performance LS7 applications
• Increased belt contact compared with the factory-style 6-rib setup
• Designed around the Corvette LS7 accessory-drive configuration
• Conversion kit includes multiple accessory-drive pulleys
• Verify exact kit contents before ordering

FITMENT APPLICATIONS:

Chevrolet Corvette Z06 — LS7 7.0L

• 2006 Chevrolet Corvette Z06
• 2007 Chevrolet Corvette Z06
• 2008 Chevrolet Corvette Z06
• 2009 Chevrolet Corvette Z06
• 2010 Chevrolet Corvette Z06
• 2011 Chevrolet Corvette Z06
• 2012 Chevrolet Corvette Z06
• 2013 Chevrolet Corvette Z06

Important: Verify the engine, accessory-drive configuration, crankshaft and dry-sump setup before ordering. This conversion is intended for the LS7 Corvette accessory-drive arrangement and should not be assumed to fit other LS engines.

INSTALLATION NOTES:

• This listing is for one 994-KIT 8-rib drive conversion kit.
• Verify the vehicle and engine application before ordering.
• The kit converts the applicable accessory drive to an 8-rib belt system.
• The included damper is the standard-diameter configuration and does not provide crankshaft overdrive.
• Verify belt length and routing after installation.
• Verify pulley alignment across the complete accessory drive.
• Inspect the crankshaft snout and keyway before installing the damper.
• Verify the crankshaft and damper keyway configuration before installation.
• Follow Innovators West installation and torque specifications.
• Verify all kit components are present before beginning installation.
• Do not modify or permanently install components until fitment has been confirmed.
• Professional installation is recommended.
