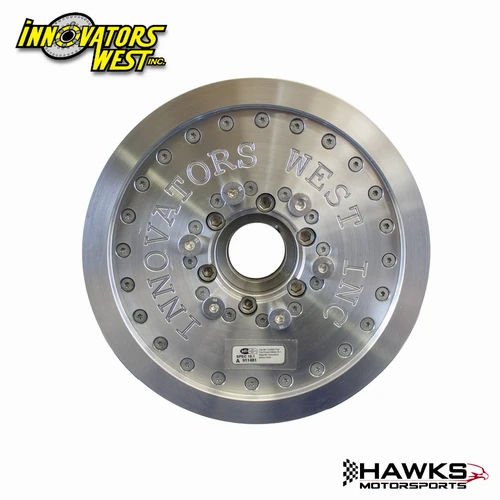

Hawks Motorsports offers our clients this 854 LSX 10-Rib Harmonic Balancer for LS7 Corvette, 10% Overdrive, Innovators West. This performance harmonic balancer is designed for LS7 Corvette applications and features an 8.125-inch diameter, 10-rib drive, and 10% overdrive. Innovators West states that its LS7 Corvette dampers are designed for LSX engines using the Corvette drive offset and dry-sump oiling system.

If you're putting an LS7 on boost, the belt drive needs to be ready for the abuse. This 10-rib setup gives the belt plenty of real estate to grab onto, while the 10% overdrive adds crank speed to the equation and can help get more RPM out of a supercharger without going straight to an ultra-small blower pulley. It's a serious piece for an LS7 that's built to be driven hard.

The 854 uses an 8.125-inch diameter pulley, weighs approximately 9.1 lbs, and exceeds SFI 18.1 standards. It comes with a single 3/16-inch keyway and is intended for LS7 Corvette accessory-drive applications.

KEY FEATURES:

• Part number: 854
• Innovators West performance harmonic balancer
• Designed for LS7 Corvette applications
• 10-rib drive
• 10% overdrive
• 8.125-inch diameter
• Approximately 9.1 lbs
• Exceeds SFI 18.1 standards
• Single 3/16-inch keyway
• Designed for LSX engines using the Corvette drive offset and dry-sump oiling system
• Intended for high-performance and forced-induction applications
• Compatible with the LS7 Corvette 10-rib accessory-drive configuration

FITMENT APPLICATIONS:

Chevrolet Corvette Z06 — 7.0L LS7

• 2006 Chevrolet Corvette Z06
• 2007 Chevrolet Corvette Z06
• 2008 Chevrolet Corvette Z06
• 2009 Chevrolet Corvette Z06
• 2010 Chevrolet Corvette Z06
• 2011 Chevrolet Corvette Z06
• 2012 Chevrolet Corvette Z06
• 2013 Chevrolet Corvette Z06

Chevrolet Corvette Grand Sport — LS7-Compatible Applications

• Verify exact accessory-drive configuration before ordering.

LSX Applications

• LSX engines utilizing the Corvette drive offset and dry-sump oiling system may be compatible.

Important: LS7 Corvette dampers are designed around the Corvette drive offset and dry-sump system. Do not assume fitment based solely on engine displacement or LS engine family.

INSTALLATION NOTES:

• This listing is for one 854 harmonic balancer.
• Verify engine, vehicle, accessory-drive configuration, and crankshaft before ordering.
• Designed for a 10-rib belt system.
• The 10% overdrive increases crank-driven accessory and supercharger speed.
• Verify belt length and routing after installation.
• Verify pulley alignment across the complete accessory drive.
• Inspect the crankshaft snout and keyway before installation.
• The damper comes with a single 3/16-inch keyway.
• Innovators West strongly recommends a second keyway on high-horsepower LS7 engines; adding a second keyway requires machining the crankshaft and adding the corresponding keyway to the damper.
• The Super Duty Blower Hub option used on some wet-sump applications is not available for the LS7 Corvette damper because of the larger oil pump and front timing-cover configuration.
• A crankshaft pin kit may be required when installing an Innovators West damper on a stock non-keyed crankshaft; verify the correct application-specific pin kit before installation.
• Follow the manufacturer's installation and torque specifications.
• Verify the complete accessory-drive combination before starting the engine.
• Do not modify or permanently install the damper until fitment has been confirmed.
