Product Description:
Free Quote Form

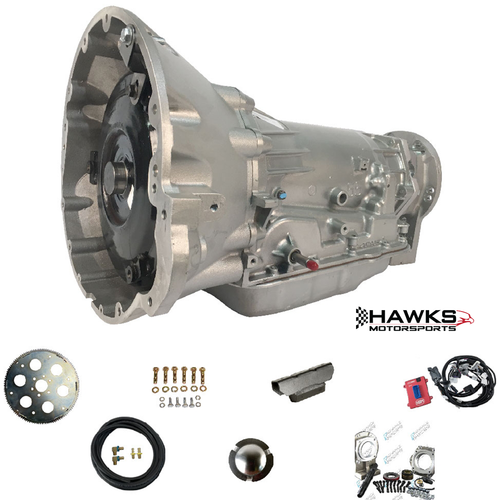

Hawks Motorsports offers our clients this Mopar 4WD Trucks & SUVs A41X 4L60E 4-Speed Automatic Conversion Kit | 650 lb-ft Capacity | A41X-4WD-MOPAR-GEN. This automatic transmission conversion system upgrades Mopar four-wheel-drive vehicles with modern electronic transmission technology, improved cruising capability, and improved drivetrain control.
Vehicle Configuration Required
Transmission conversion kits are vehicle specific. Complete the Hawks Motorsports Transmission Conversion Request Form before ordering so our team can verify compatibility and confirm the correct components for your application.
The A41X transmission is based on a GM 4L60E / 4L65E aftermarket replacement design and provides modern overdrive performance for Mopar 4WD applications. With gear ratios of 3.06, 1.63, 1.00, and 0.70, the A41X provides improved acceleration while reducing cruising RPM compared to many original automatic transmissions.
Available in three torque capacity stages, the A41X conversion kit can be configured for applications rated at 450 lb-ft, 550 lb-ft, or 650 lb-ft of torque. This makes it suitable for a variety of Mopar drivetrain upgrades including V8 318, 340, and 360 engines as well as Gen III Hemi applications when properly configured.
Each conversion kit includes the required components for the selected application, including the A41X automatic transmission, bellhousing, electronically controlled lockup torque converter, flexplate, hardware, isolator mount, COMPUSHIFT Sport controller, cooling line, bellhousing dust cover, transfer case adapter, OEM-style dipstick and tube, instructions, and warranty.
The COMPUSHIFT Sport controller provides adjustable transmission control through Bluetooth-enabled smartphone, tablet, PC, or Mac integration. Users can adjust shift points, shift feel, torque converter clutch control, and speedometer calibration while utilizing plug-and-play connectors for supported applications.
Additional components such as auxiliary oil coolers, torque converter stall options, and other accessories may be required depending on the application and selected configuration.
KEY FEATURES:
- A41X 4L60E / 4L65E based automatic transmission conversion kit for Mopar 4WD applications
- Available in Stage 1, Stage 2, and Stage 3 torque capacity configurations
- Stage 1 rated at 450 lb-ft torque capacity
- Stage 2 rated at 550 lb-ft torque capacity
- Stage 3 rated at 650 lb-ft torque capacity
- 4-speed automatic transmission with overdrive gearing
- Gear ratios: 3.06, 1.63, 1.00, and 0.70
- Electronic transmission controller included
- COMPUSHIFT Sport controller with Bluetooth connectivity
- Adjustable shift speeds, shift feel, and torque converter clutch control
- Lockup torque converter with available stall speed options
- No tunnel cutting required for properly configured applications
- Dyno tested transmission system
- Includes bellhousing, flexplate, hardware, isolator mount, and transfer case adapter
- Includes OEM-style dipstick and tube, cooling line, dust cover, and instructions
- Auxiliary oil cooler included on Stage 2 and Stage 3 kits; optional for Stage 1 applications
FITMENT APPLICATIONS
| Make | Engine/Application | Years |
|---|---|---|
| Dodge / Ram | 4WD Applications - V8 318, 340, and 360 Engines | Vehicle Specific Application |
| Dodge / Ram | 4WD Applications - Gen III Hemi Engines | Vehicle Specific Application |
Verify fitment before ordering. Vehicle configuration, engine selection, transfer case specifications, and drivetrain requirements must be confirmed before purchase.
INSTALLATION NOTES:
- This conversion kit requires vehicle-specific verification before purchase.
- Complete the Hawks Motorsports Transmission Conversion Request Form to confirm compatibility.
- Stage selection should be based on engine output, intended use, and drivetrain requirements.
- Additional components may be required depending on vehicle configuration and installation requirements.
- Professional installation is recommended due to electronic controller setup and drivetrain modifications.
- Verify all vehicle specifications before installation.
- Installed or modified components may not be eligible for return. Confirm application details before installation.
