Product Description:
Hawks Motorsports offers our clients this 1967-1972 Chevrolet/GMC K-Series 4WD A41X 4L60E 4-Speed Automatic Conversion Kit | 650 lb-ft Capacity | A41X-4WD-GM-KSERIES. This automatic transmission conversion system upgrades classic GM K-Series 4WD trucks with modern overdrive technology, electronic transmission control, and improved drivability for both street and off-road use.
Vehicle Configuration Required
Transmission conversion kits are vehicle specific. Complete the Hawks Motorsports Transmission Conversion Request Form before ordering so our team can verify compatibility and confirm the correct components for your application.
Designed specifically for 1967-1972 Chevrolet and GMC K-Series 4WD applications, this A41X conversion kit provides a modern automatic transmission solution for classic trucks. The A41X utilizes a GM 4L60E / 4L65E aftermarket replacement transmission platform with electronically controlled shifting and overdrive capability.
With gear ratios of 3.06, 1.63, 1.00, and 0.70, the A41X provides improved acceleration, smoother highway cruising, and reduced engine RPM compared to many original automatic transmissions. The kit is available in three torque capacity configurations: Stage 1 at 450 lb-ft, Stage 2 at 550 lb-ft, and Stage 3 at 650 lb-ft.

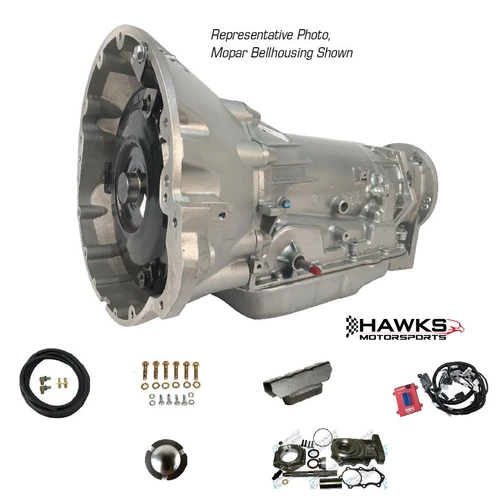

The complete conversion kit includes the A41X automatic transmission, bellhousing, lockup torque converter, cooling line, hardware, isolator mount, COMPUSHIFT Sport controller, bellhousing dust cover, GM NP205 transfer case adapter, OEM-style dipstick and tube, instructions, and warranty.
The included COMPUSHIFT Sport controller allows programmable transmission control through Android, iOS, PC, and Mac devices. Users can adjust shift strategy, shift speed, shift feel, torque converter clutch control, and speedometer calibration while utilizing plug-and-play connectors for supported applications.
Installation may require cutting and/or fabrication depending on the vehicle configuration. Verify engine, transfer case, and drivetrain specifications before ordering to ensure proper application.
KEY FEATURES:
- A41X 4L60E / 4L65E based automatic conversion kit for 1967-1972 GM K-Series 4WD applications
- Available in Stage 1, Stage 2, and Stage 3 configurations
- Stage 1 rated at 450 lb-ft torque capacity
- Stage 2 rated at 550 lb-ft torque capacity
- Stage 3 rated at 650 lb-ft torque capacity
- 4-speed automatic overdrive transmission design
- Gear ratios: 3.06, 1.63, 1.00, and 0.70
- Electronic COMPUSHIFT Sport controller included
- Smartphone integration through Android, iOS, PC, and Mac
- Adjustable shift strategy, shift feel, and torque converter clutch control
- Lockup torque converter with optional stall speed options
- Dyno-tested transmission system
- Plug-and-play controller connectors for supported applications
- Transfer case switch input for 4WD low-range calibration
- Includes bellhousing, torque converter, cooling line, hardware, and isolator mount
- Includes GM NP205 adapter, dipstick and tube, dust cover, and instructions
- Auxiliary oil cooler included with Stage 2 and Stage 3 kits; optional for Stage 1
FITMENT APPLICATIONS
| Make | Model | Years |
|---|---|---|
| Chevrolet | K-Series 4WD Trucks | 1967-1972 |
| GMC | K-Series 4WD Trucks | 1967-1972 |
Verify fitment before ordering. Engine combination, transfer case, drivetrain configuration, and required modifications must be confirmed before purchase.
INSTALLATION NOTES:
- This conversion kit requires vehicle-specific verification before purchase.
- Complete the Hawks Motorsports Transmission Conversion Request Form to confirm compatibility.
- Cutting and/or fabrication may be required depending on the vehicle configuration.
- Stage selection should be based on engine output and intended vehicle use.
- Additional components may be required depending on engine, transfer case, and drivetrain combination.
- Professional installation is recommended due to drivetrain modifications and electronic controller setup.
- Verify all vehicle specifications before installation.
- Installed or modified components may not be eligible for return. Confirm application details before installation.
